A7™ Service Manual 046-006272-00 4 - 7
Calibration System Calibration

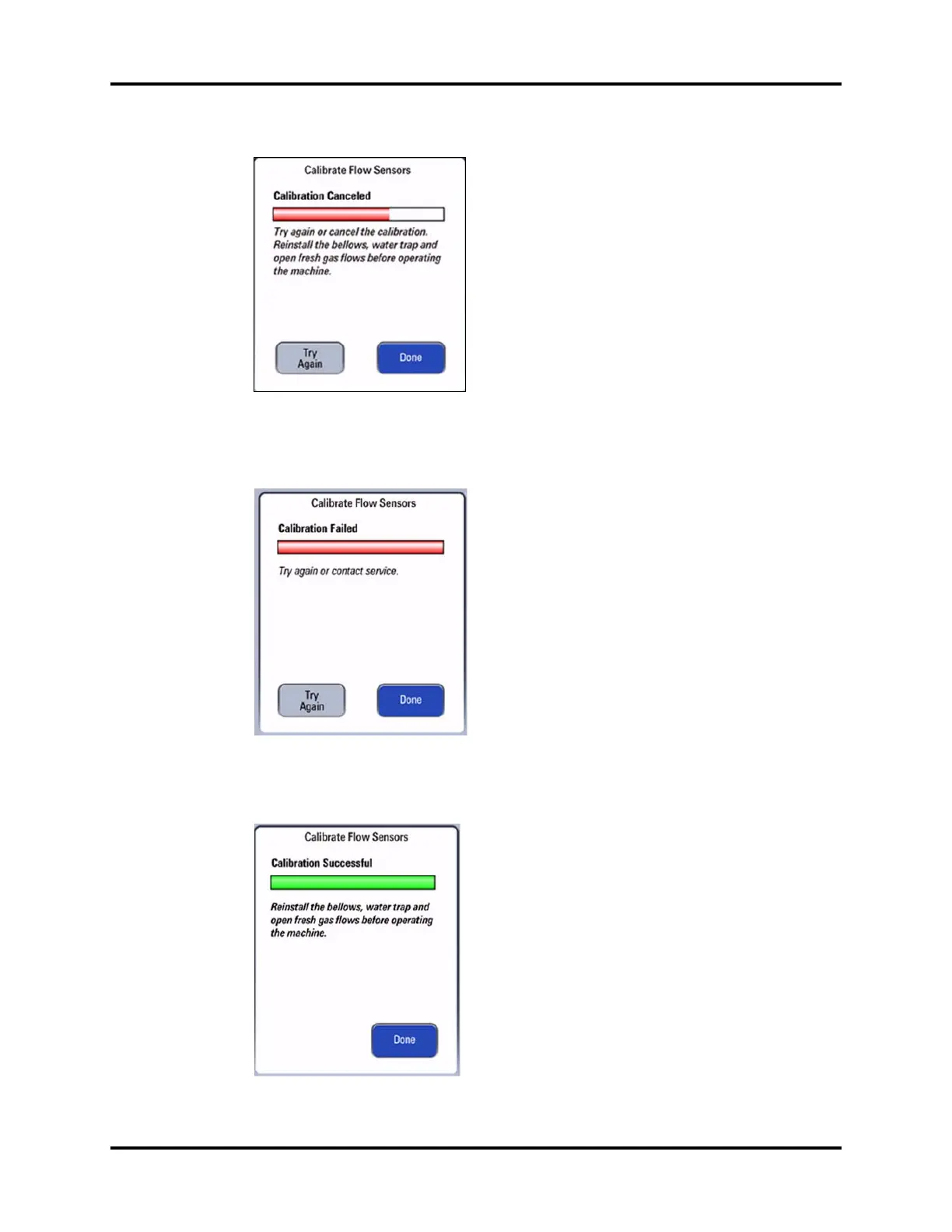

FIGURE 4-4
6. The screen shown below is displayed if the flow sensor calibration is failed. Select Try Again to
do the calibration again. Select Done to exit the calibration screen.
FIGURE 4-5
7. The screen shown below is displayed after a successful flow sensor calibration. Select Done to
exit the calibration screen.
FIGURE 4-6
