Mindray A7 Service Manual

A7™ Service Manual 046-006272-00 4 - 9
Calibration System Calibration

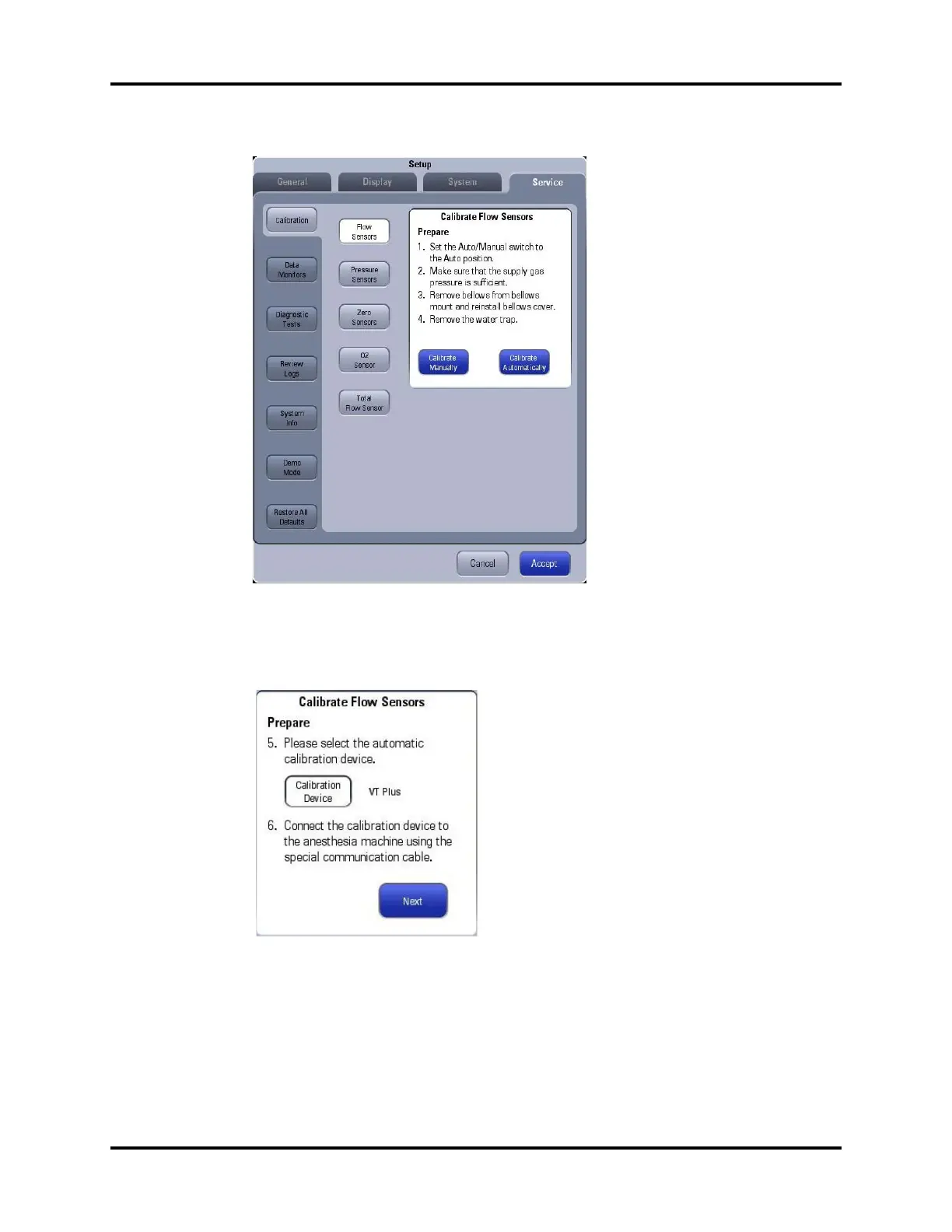

FIGURE 4-7
3. Select Calibrate Automatically button to open the menu shown below. Then select the desired
calibration device.
FIGURE 4-8
4. Connect the calibration device with the anesthesia machine using a communication cable (P/N:
801-0631-00121-00).

Mindray A7 Specifications

General

Type	Anesthesia Workstation
Brand	Mindray
Model	A7
Display	15-inch color touchscreen
Oxygen Flush	Yes
Gas Inlets	O2, N2O, Air
Ventilation Modes	SIMV, PSV
Breathing System	Integrated
Gas Monitoring	O2, CO2, N2O
Monitoring Parameters	FiO2
CO2 Monitoring	Mainstream or Sidestream
Power Supply	100-240 V, 50/60 Hz
