Mindray A7 Service Manual

System Calibration Calibration
4 - 10 046-006272-00 A7™ Service Manual

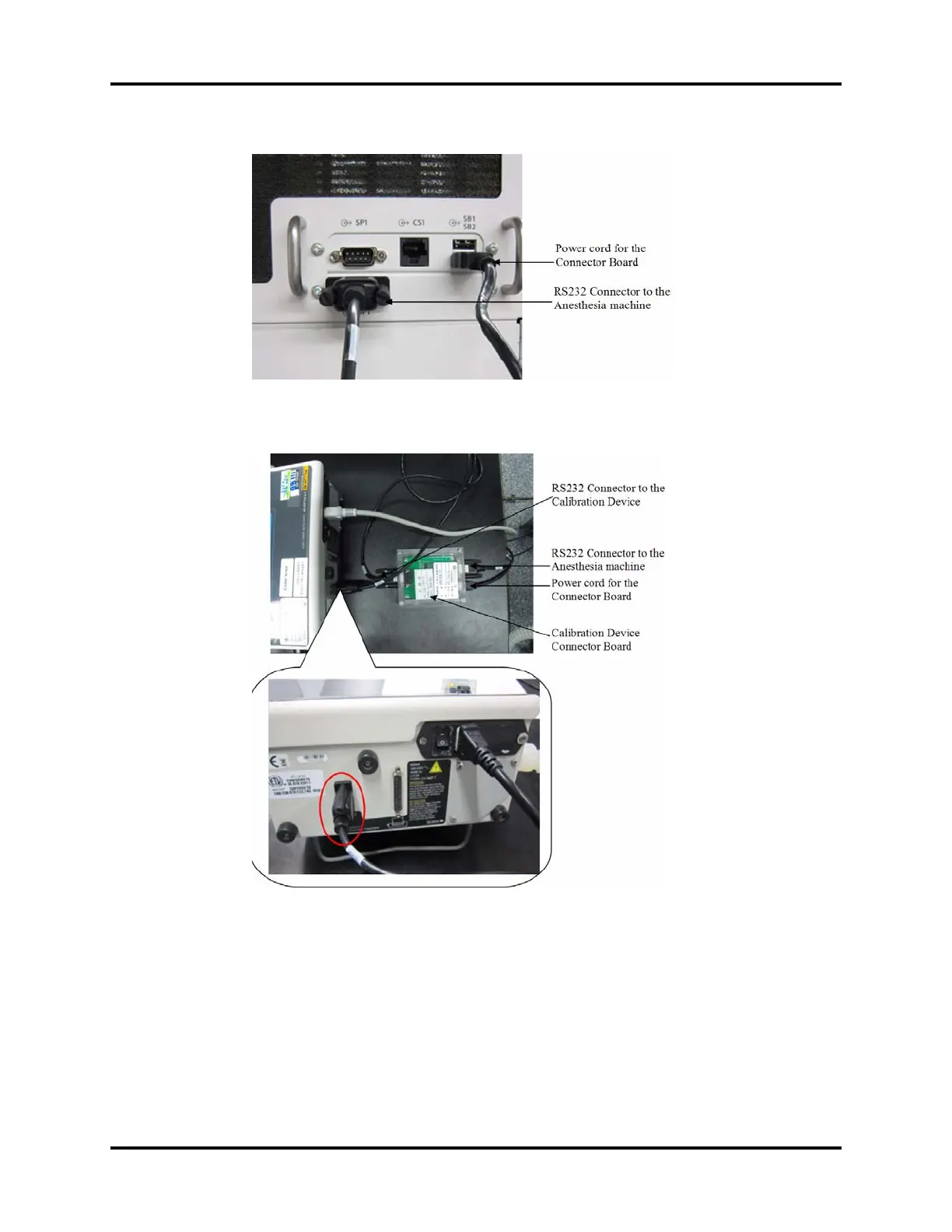

FIGURE 4-9 Cable connections at the anesthesia machine end
FIGURE 4-10 Cable connections at the calibration device (VT Plus) end
5. Set up the calibration device as described below.
To set the VT-Plus:
a. Gas Settings: Press the Setup button, select Setting->ENTER->Gas Settings->MODIFY->Gas
Type->O2->BACK->BACK.
