System Calibration Calibration
4 - 14 046-006272-00 A7™ Service Manual
8. Press the Begin button to open the menu shown below.

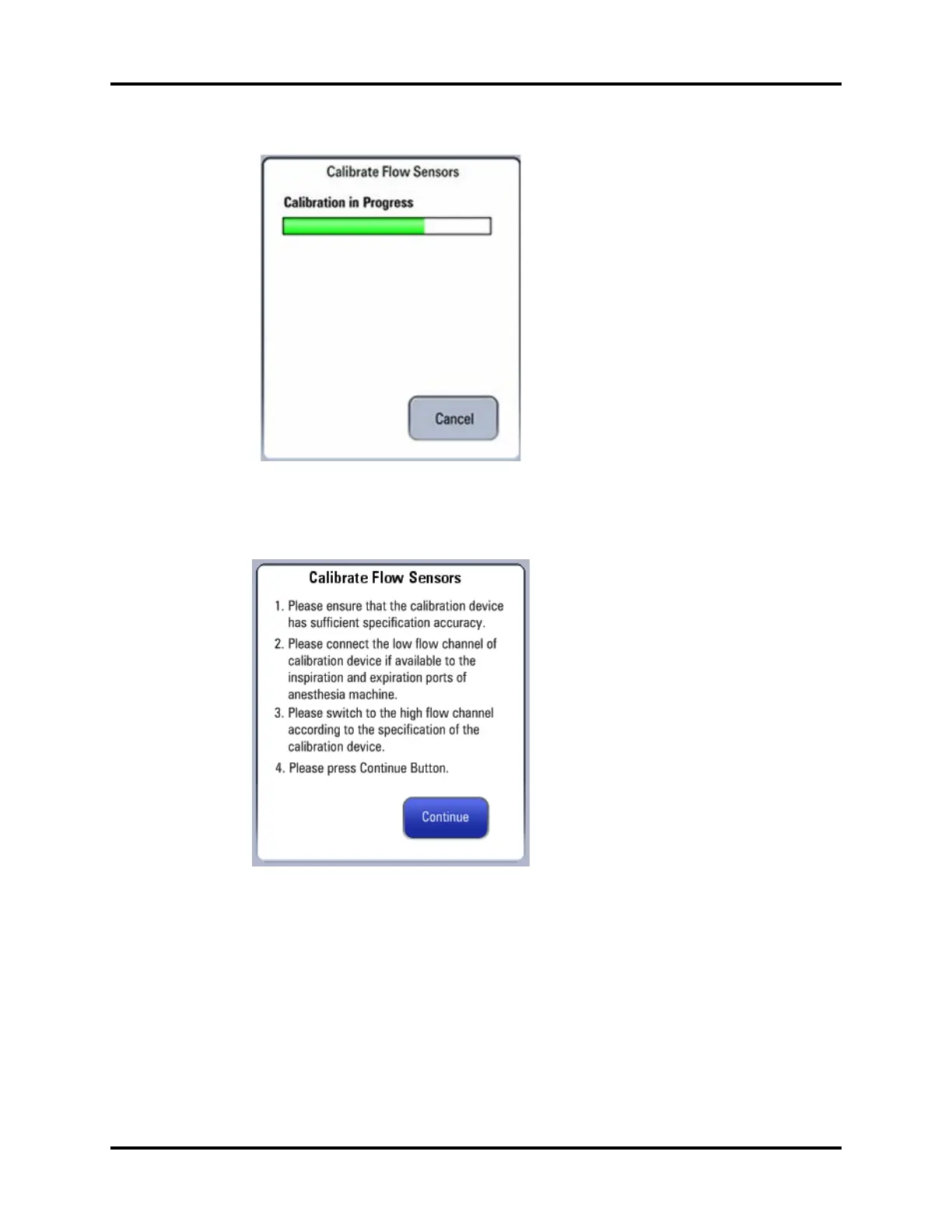

FIGURE 4-17
9. The menu shown below is displayed after the above steps are completed.
FIGURE 4-18
10. Connect the pneumatic circuit of calibration device with that of anesthesia machine following
the on-screen instructions. Connect the low flow channel of the calibration device first, shown
below.
