Mindray A7

A7™ Service Manual 046-006272-00 4 - 15
Calibration System Calibration

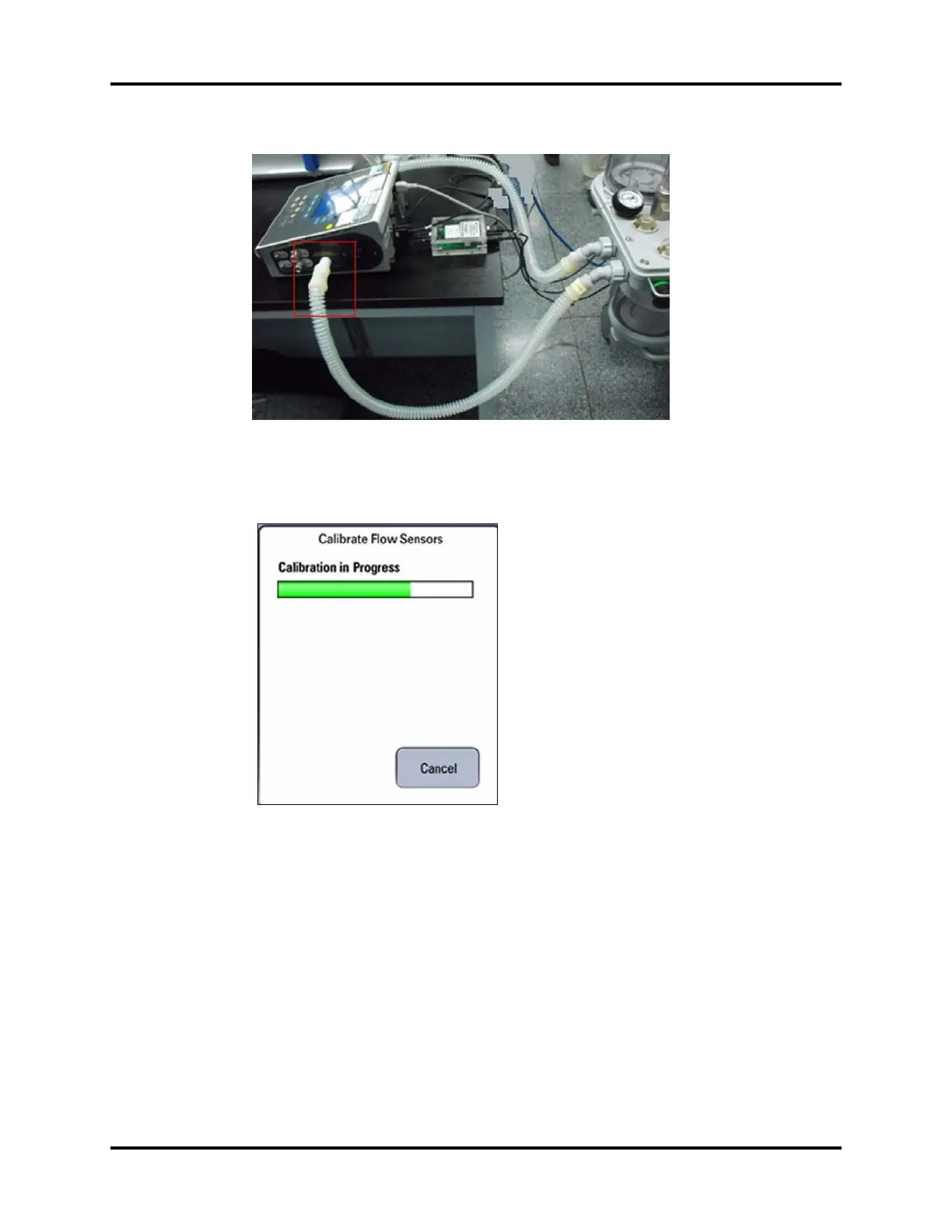

FIGURE 4-19 Pneumatic connection with the calibration device (VT Plus)
11. Press the Continue button to open the menu shown below.
FIGURE 4-20
12. The menu shown below is displayed after the low flow channel calibration is completed.
