Mindray A7 Service Manual

System Calibration Calibration
4 - 16 046-006272-00 A7™ Service Manual

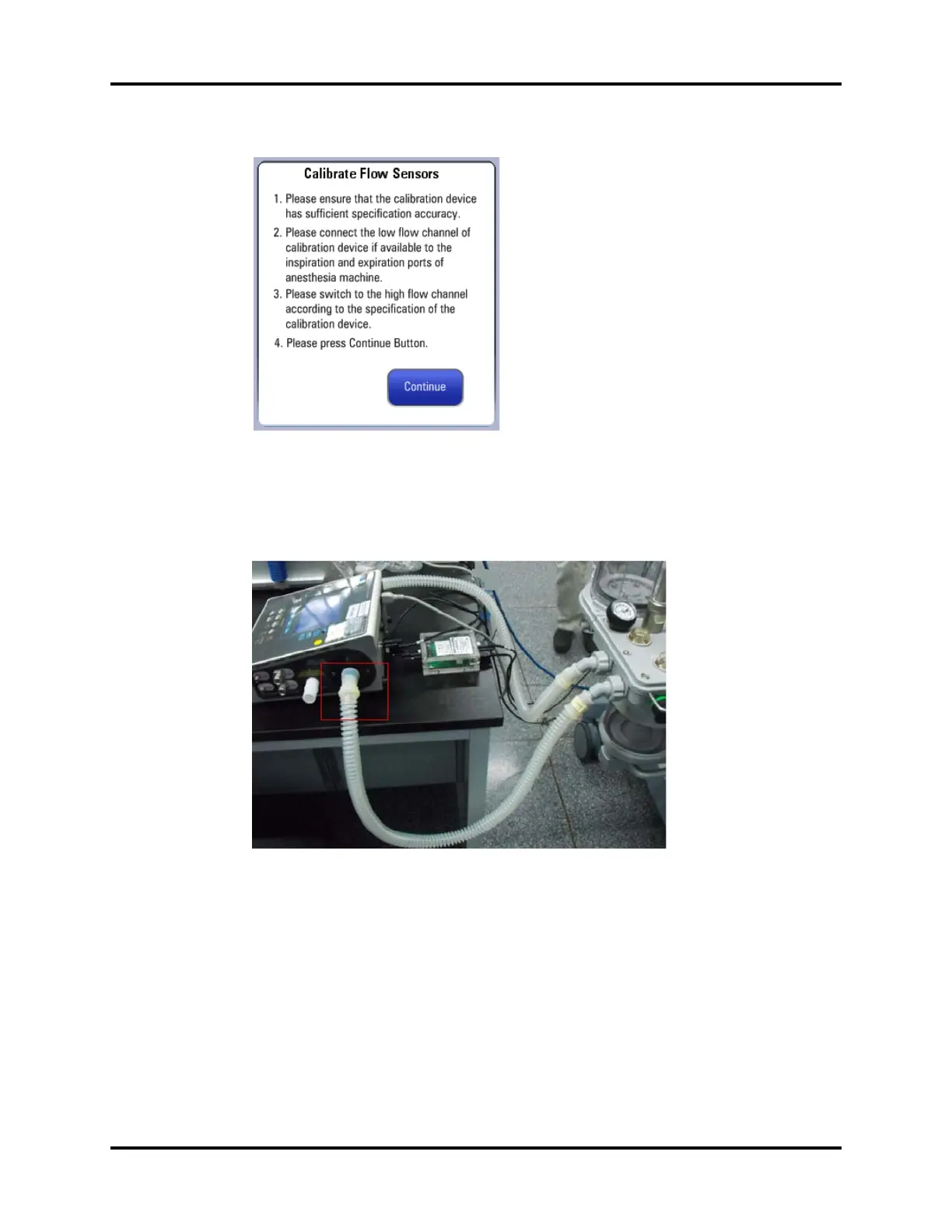

FIGURE 4-21
13. Connect the high flow channel of the calibration device following the on-screen instructions
shown below.
FIGURE 4-22 Pneumatic connection with the calibration device (VT Plus)
14. Press the Continue button to open the menu shown below.

Mindray A7 Specifications

General

Type	Anesthesia Workstation
Brand	Mindray
Model	A7
Display	15-inch color touchscreen
Oxygen Flush	Yes
Gas Inlets	O2, N2O, Air
Ventilation Modes	SIMV, PSV
Breathing System	Integrated
Gas Monitoring	O2, CO2, N2O
Monitoring Parameters	FiO2
CO2 Monitoring	Mainstream or Sidestream
Power Supply	100-240 V, 50/60 Hz
