Mindray A7

System Calibration Calibration
4 - 20 046-006272-00 A7™ Service Manual

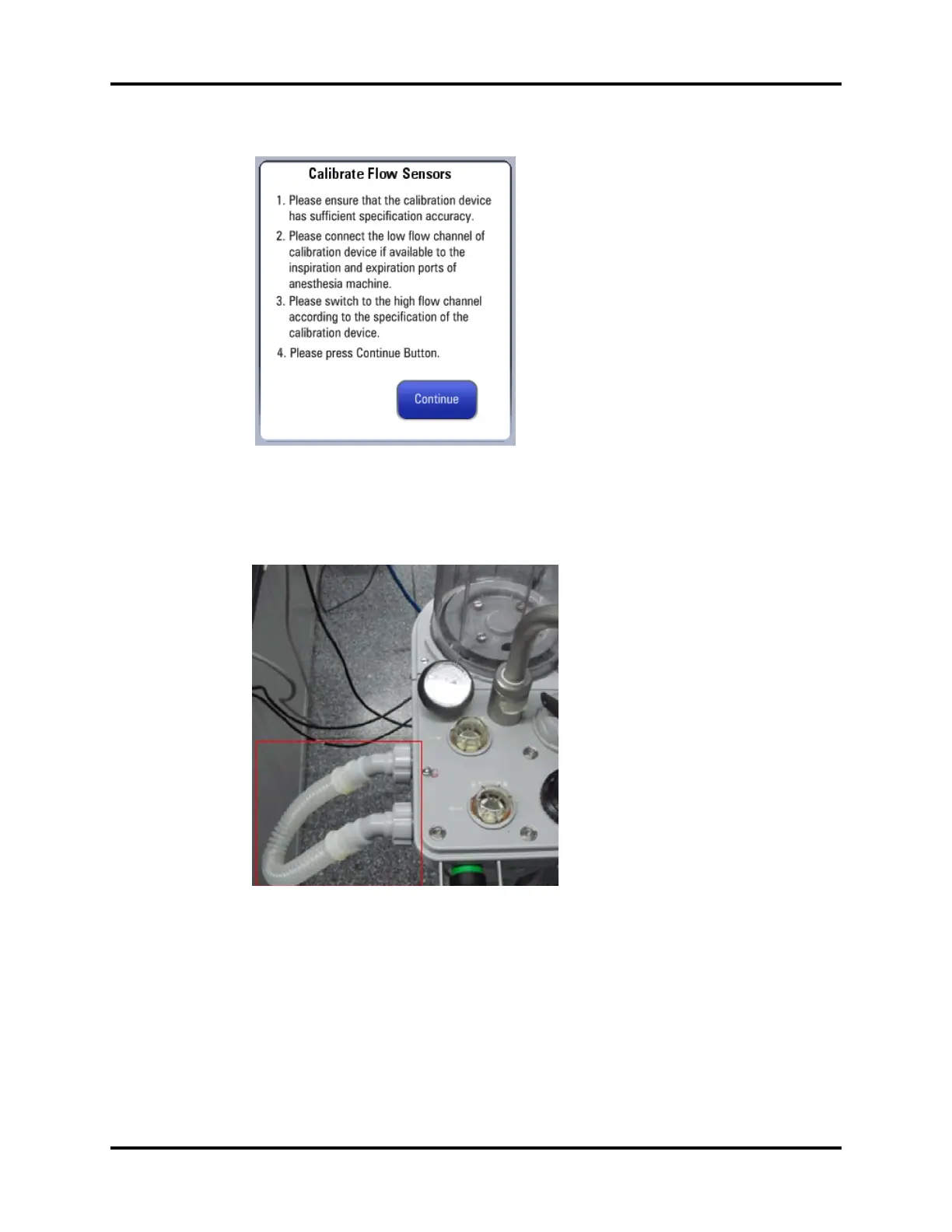

FIGURE 4-28
4. Connect the inspiration port and expiration port of the anesthesia machine following the on-
screen instruction as shown below.
FIGURE 4-29
5. Press the Begin button to open the menu shown below.
