Disassemble the Assemblies Repair and Disassembly
6 - 6 046-006272-00 A7™ Service Manual
6.2.1.5 Remove the Proportional Valve
1. Remove the EFCS module.
2. Disconnect the plug of the proportional valve from the flowmeter monitoring board.
3. Unscrew the two screws and remove the battery valve isolation metal sheet.

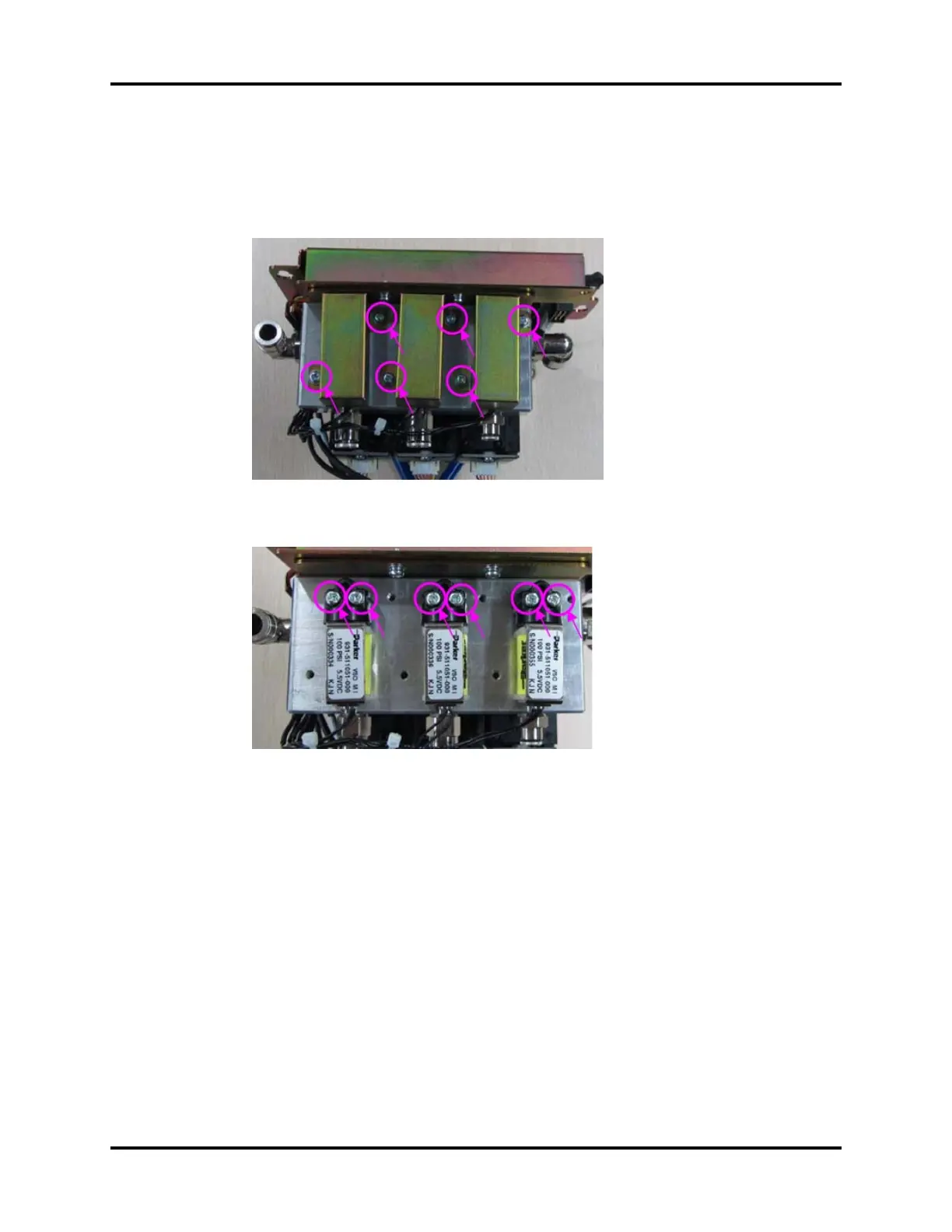

FIGURE 6-5
4. Unscrew the two screws and remove the proportional valve.
FIGURE 6-6
