A7™ Service Manual 046-006272-00 6 - 11
Repair and Disassembly Disassemble the Assemblies

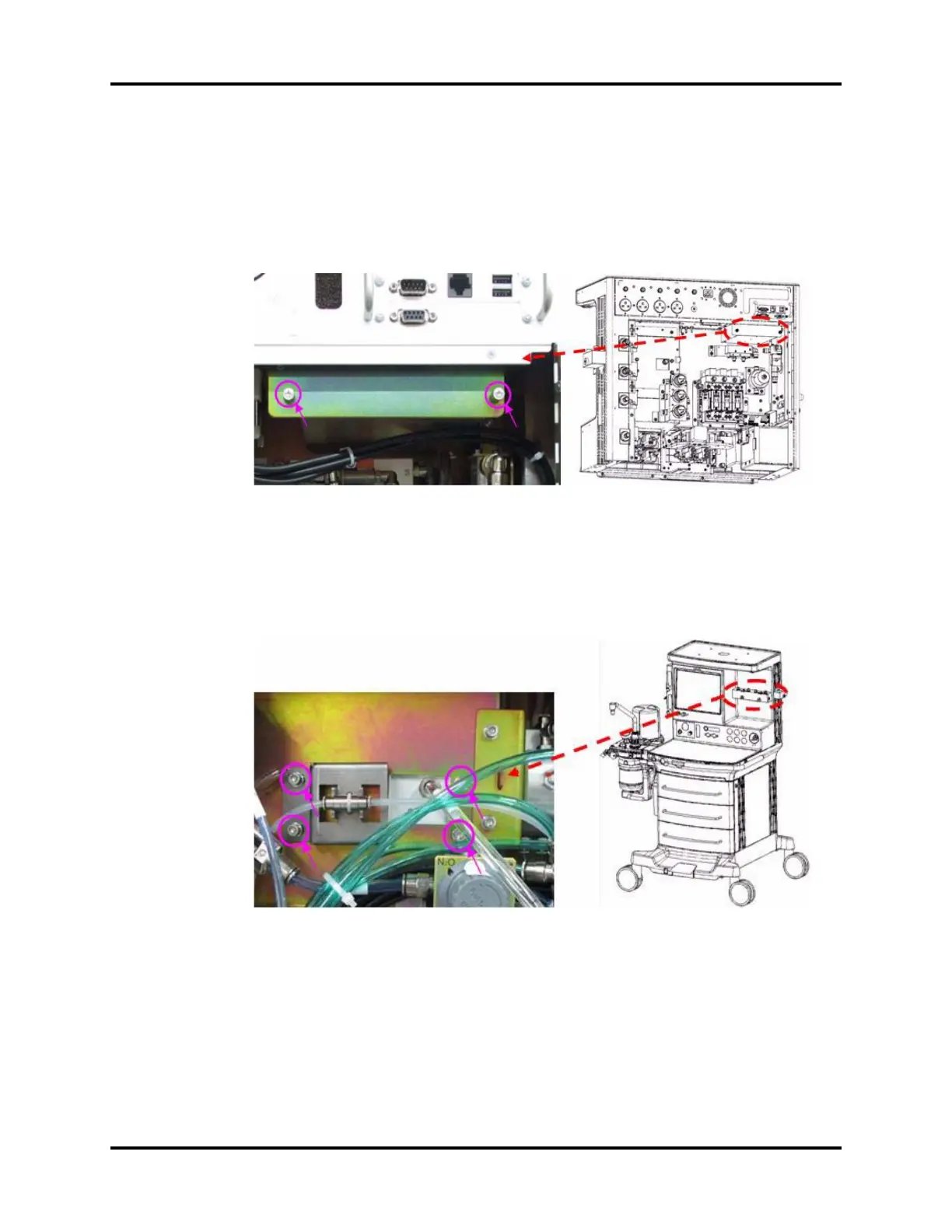

6.2.1.11 Replace the Lithium-ion Battery
1. Open the service door.
2. Unscrew the two screws on the battery box cover, and then you can take out the lithium-ion
battery.
3. Place the new lithium-ion battery into the battery box in the original direction to complete
battery replacement.
FIGURE 6-16
6.2.1.12 Remove the Vaporizer Manifold
1. Open the service door.
2. Unplug the tubes from the vaporizer manifold.
3. Unscrew the four screws and remove the vaporizer manifold.
FIGURE 6-17
To Next Page
