A7™ Service Manual 046-006272-00 6 - 15

Repair and Disassembly Disassemble the Assemblies

6.2.2.3 Remove the CPU Board

NOTE: When replacing the CPU Board, software reinstallation may be

required.

1. Remove the top plate assembly.

2. Unscrew the three screws fastening the main control board to remove the board.

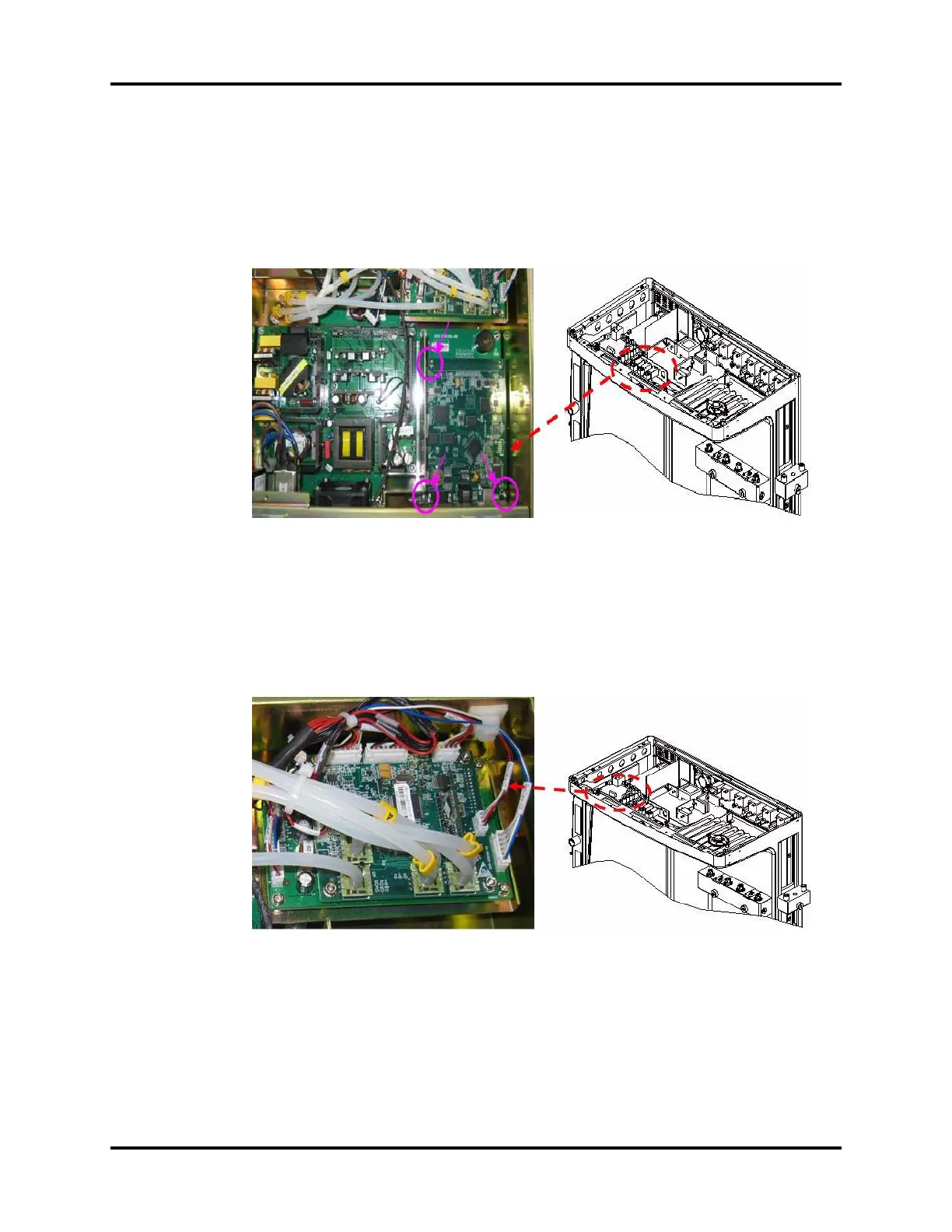

FIGURE 6-25

6.2.2.4 Remove the Ventilator Control Board

NOTE: When replacing the Ventilator Control Board, software reinstallation

may be required.

1. Remove the top plate assembly.

2. Unplug the related cables and tubes from the ventilator control board.

FIGURE 6-26
