Disassemble the Assemblies Repair and Disassembly
6 - 16 046-006272-00 A7™ Service Manual

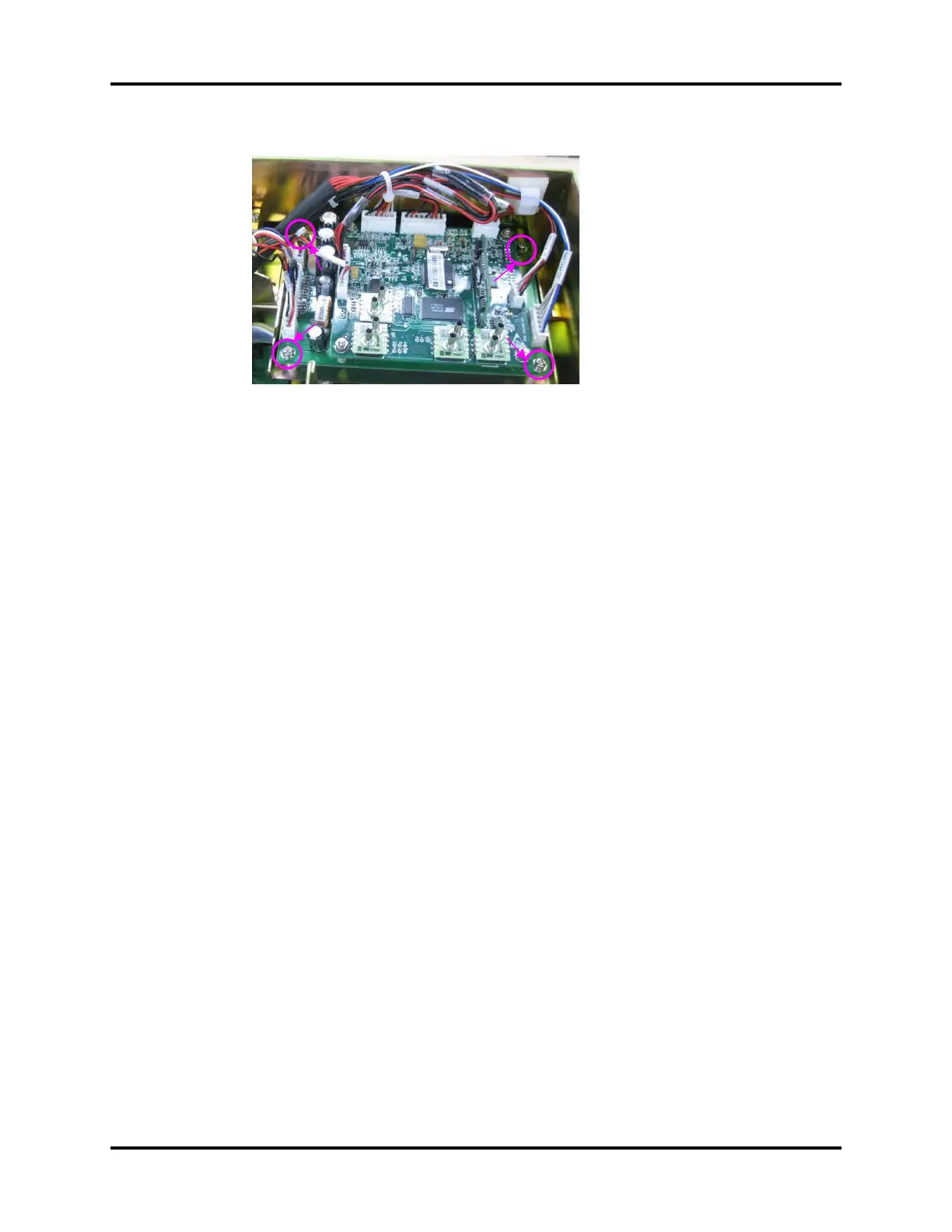

3. Unscrew the four screws fastening the ventilator control board to remove it.
FIGURE 6-27
Refer to “Connections Between Pneumatic Circuit, Breathing System and Ventilator Control Board” on
page 1-10.
