A7™ Service Manual 046-006272-00 6 - 17

Repair and Disassembly Disassemble the Assemblies

6.2.2.5 Remove the Power Board

1. Disassemble the top panel assembly.

2. Unscrew the two screws fastening the high-pressure protection cover to remove the protection

cover.

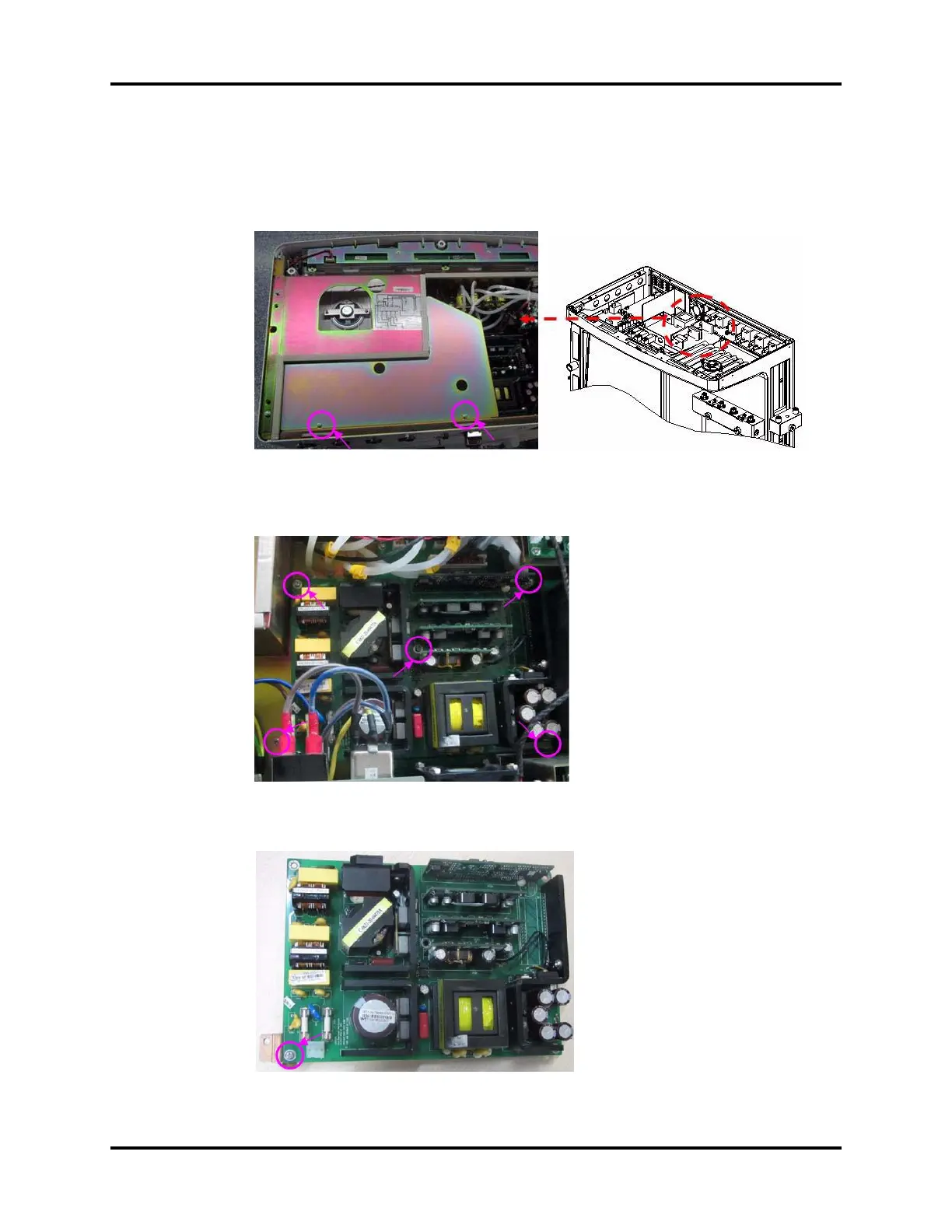

FIGURE 6-28

3. Unplug the filter cable plug. Unscrew the screw on the power board support sheet, three screws

and one nut fastening the power board to remove the power board.

FIGURE 6-29

4. Unscrew the screw on the power board support sheet to remove the support sheet.

FIGURE 6-30
