Disassemble the Assemblies Repair and Disassembly
6 - 18 046-006272-00 A7™ Service Manual

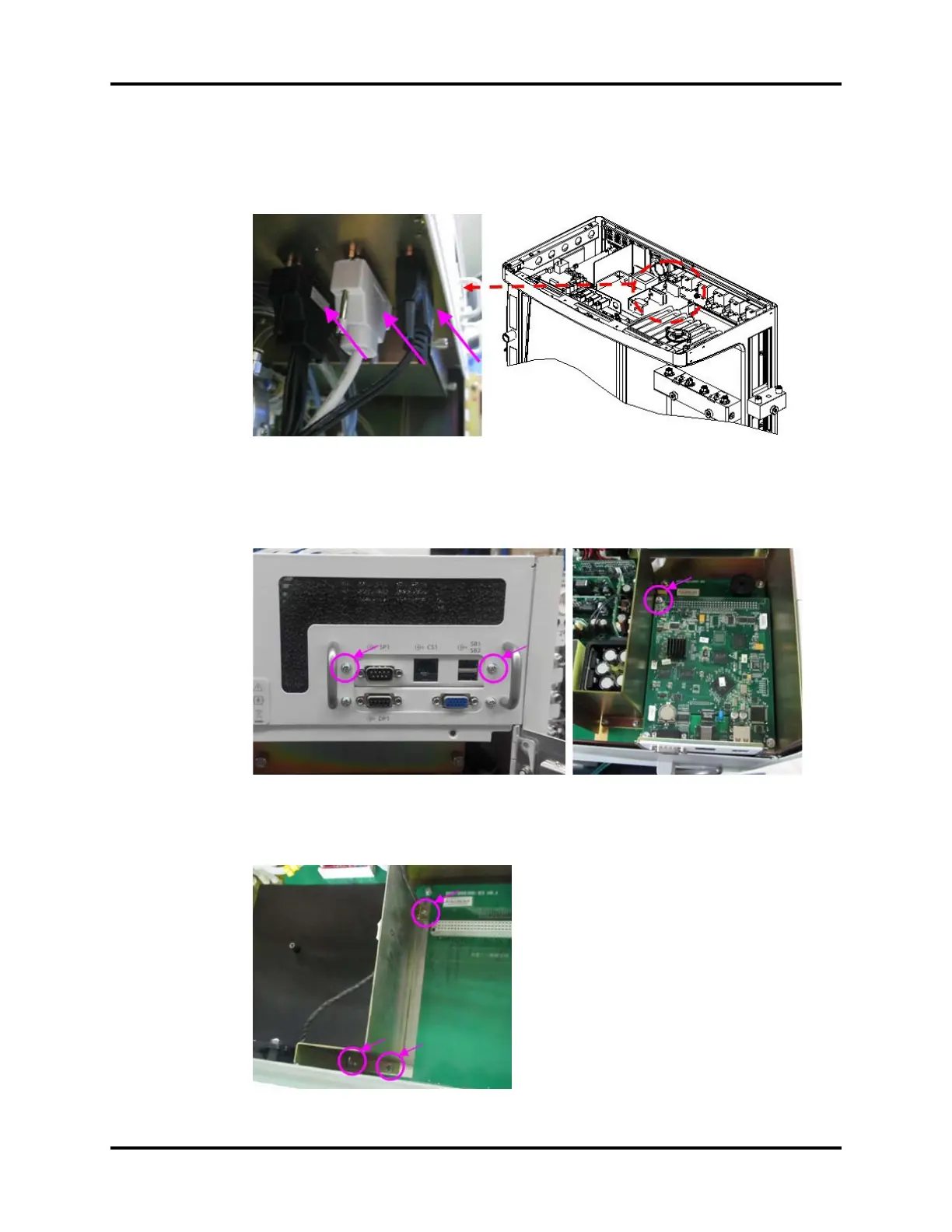

6.2.2.6 Remove the Motherboard
1. Open the service door.
2. Disconnect the three cables from the motherboard.
FIGURE 6-31
3. Remove the top plate assembly.
4. Unscrew the three screws on the CPU board output bracket and remove the CPU board and the
metal sheet.
FIGURE 6-32
5. Remove the power board.
6. Unscrew the three screws to and remove the wind shield.
FIGURE 6-33
