A7™ Service Manual 046-006272-00 6 - 19
Repair and Disassembly Disassemble the Assemblies
7. Remove the power board insulation overlay.

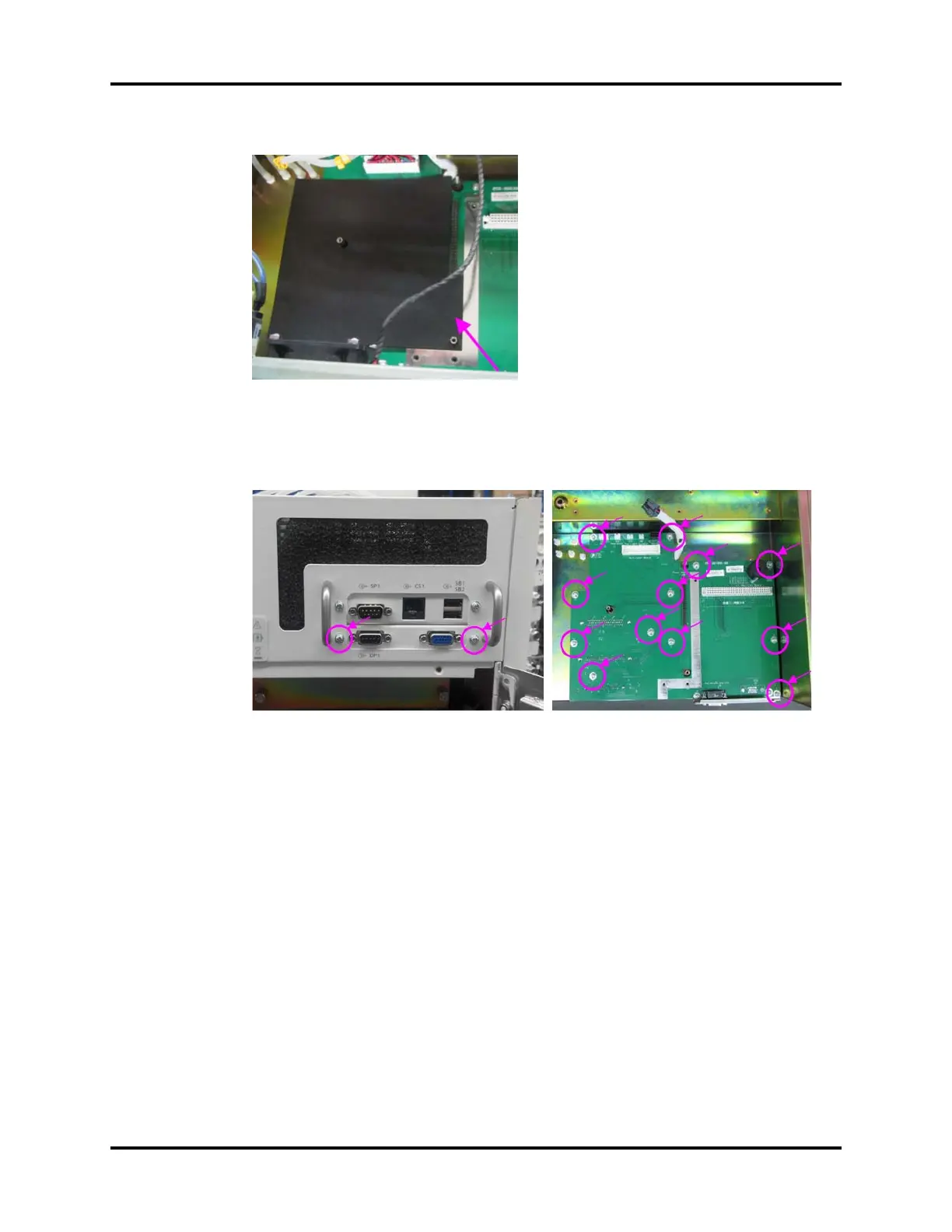

FIGURE 6-34
8. Disconnect the cables from the motherboard.
9. Unscrew the two screws on the motherboard output bracket and the 12 screws fastening the
motherboard to remove the motherboard.
FIGURE 6-35
