Disassemble the Assemblies Repair and Disassembly
6 - 20 046-006272-00 A7™ Service Manual

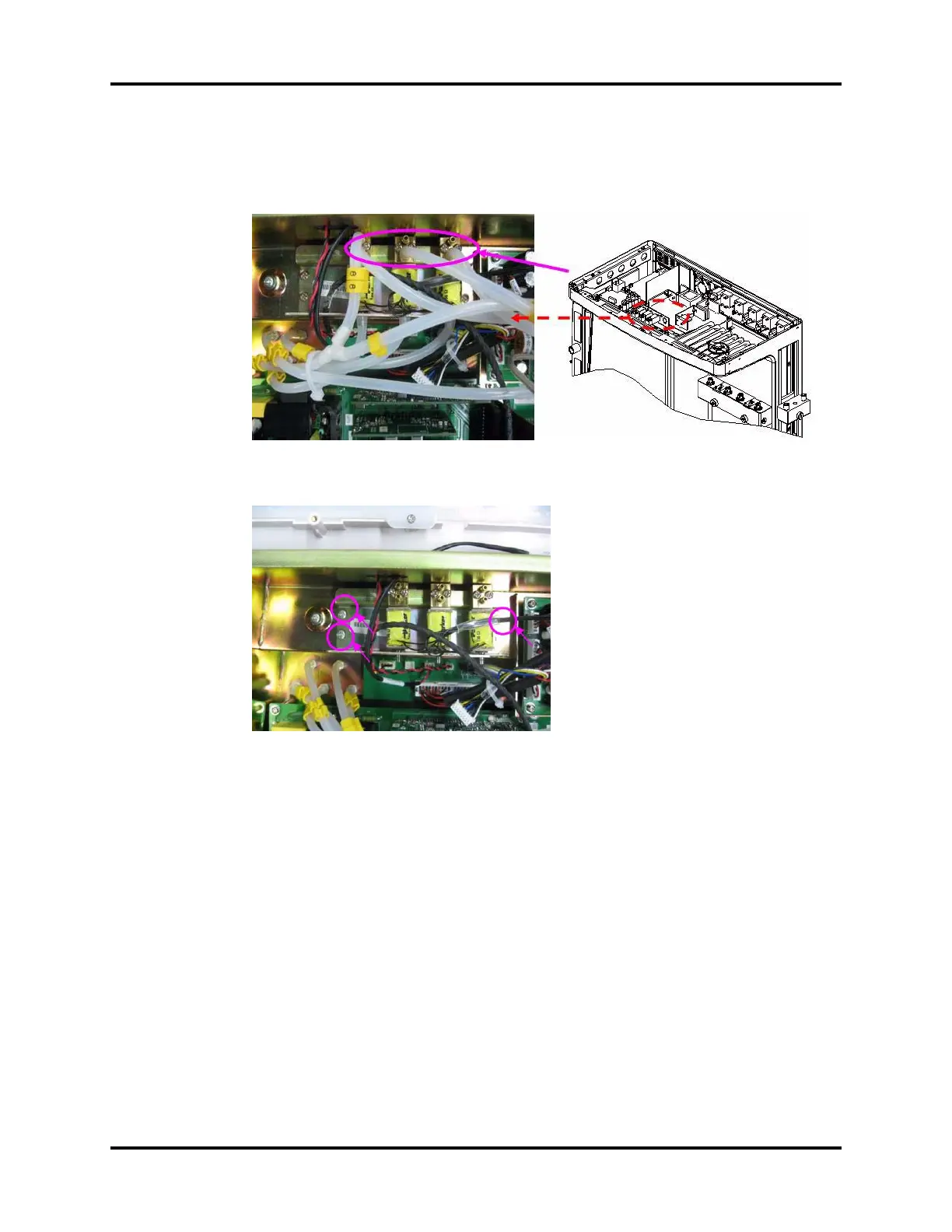

6.2.2.7 Remove the Solenoid Valve Assembly
1. Remove the top plate assembly.
2. Unplug the related tubes and cables from the solenoid valve assembly.
FIGURE 6-36
3. Unscrew the three screws on the solenoid valve to remove the solenoid valve assembly.
FIGURE 6-37
Refer to “Connections Between Pneumatic Circuit, Breathing System and Ventilator Control Board” on
page 1-10..
