Repair and Disassembly Disassemble the Assemblies
6.2.2.8 Remove the Speaker
1. Remove the top plate assembly.
2. Unplug the speaker cables from the backplane.
3. Unscrew the two screws to remove the speaker.

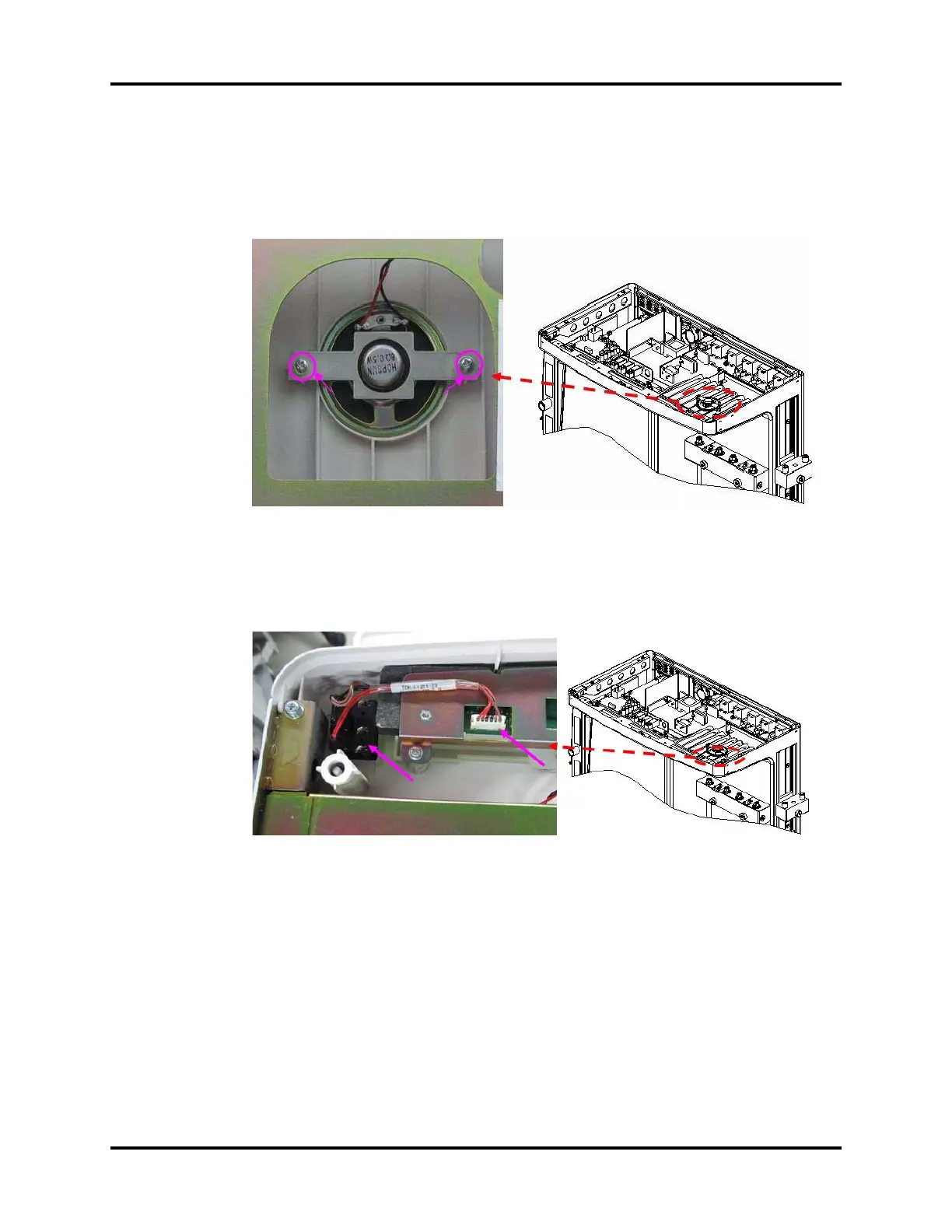

FIGURE 6-38
6.2.2.9 Remove the Rocker Switch
1. Remove the top plate assembly.
2. Unplug the plug of the rocker switch and remove the rocker switch.
FIGURE 6-39
