Mindray A7

Disassemble the Assemblies Repair and Disassembly
6 - 22 046-006272-00 A7™ Service Manual

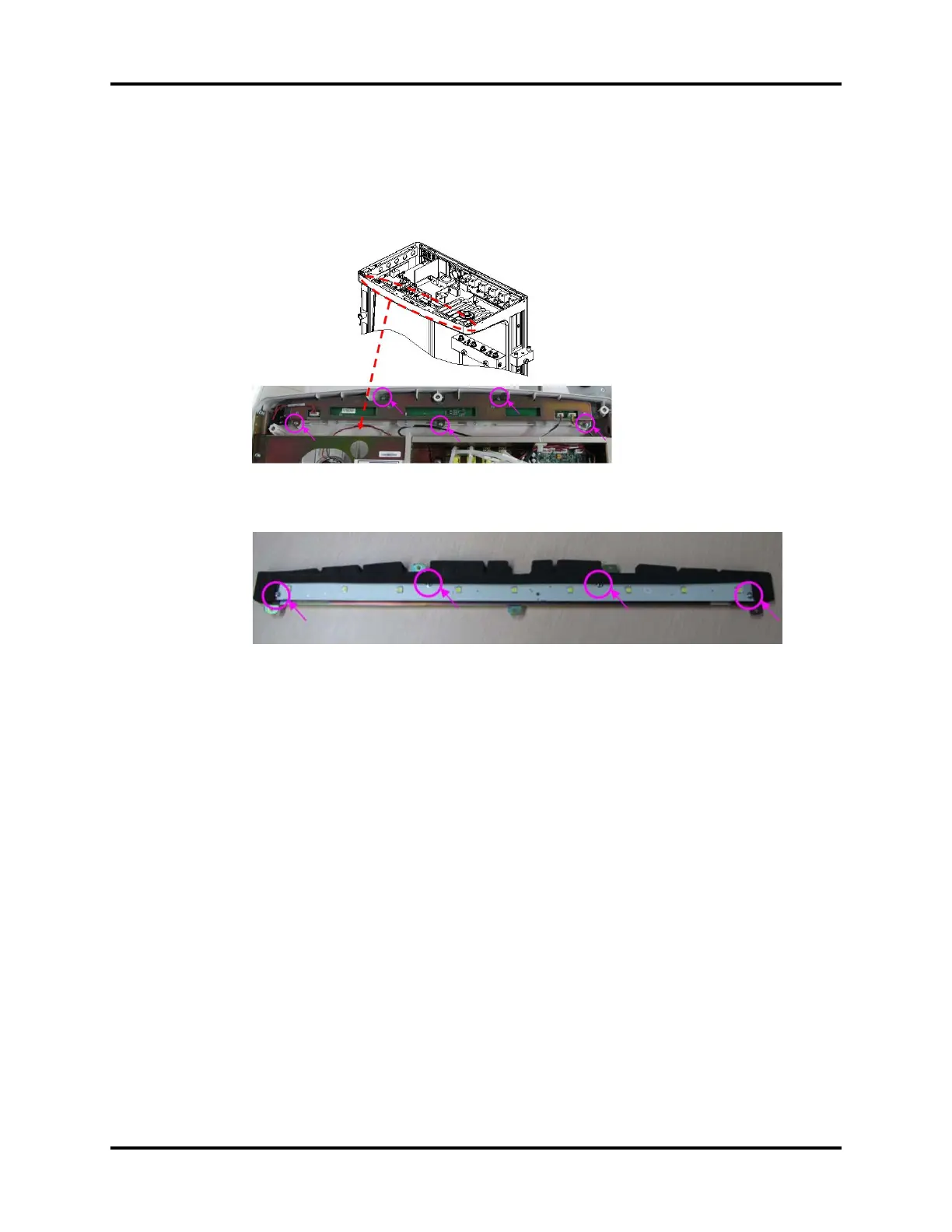

6.2.2.10 Remove the Top Light Board
1. Remove the top plate assembly.
2. Unplug the cables from the top light board.
3. Unscrew the five screws to remove this assembly.
FIGURE 6-40
4. Unscrew the four screws to remove the top light board.
FIGURE 6-41
