A7™ Service Manual 046-006272-00 6 - 23
Repair and Disassembly Disassemble the Assemblies
6.2.2.11 Disassemble the Rear Panel Assembly
1. Remove the top plate assembly.

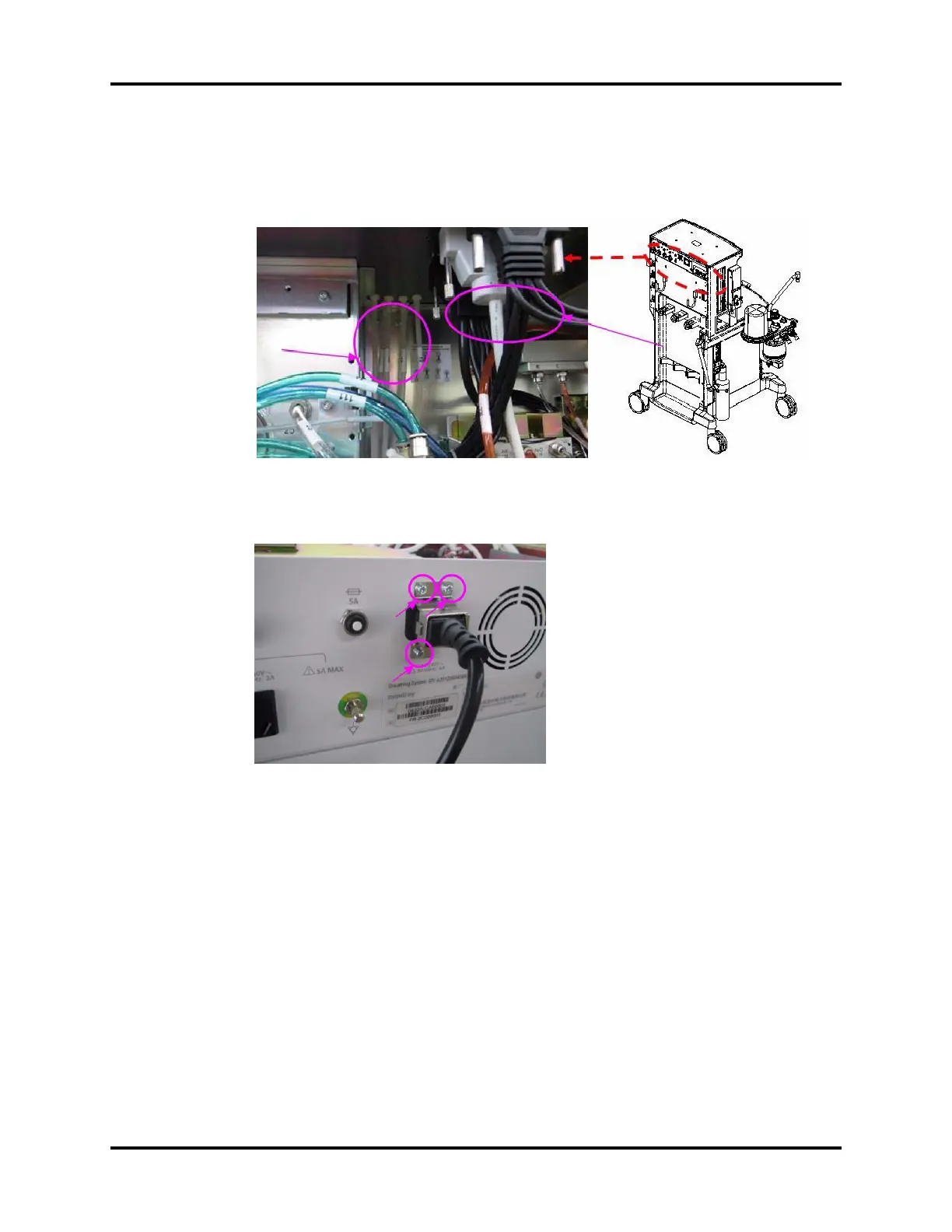

2. Open the service door.Remove the cables and tubes from the hardware box assembly.
FIGURE 6-42
3. Unscrew the three screws fastening the power plug protection hook to remove the power cord
and protection hook.
FIGURE 6-43
