Disassemble the Assemblies Repair and Disassembly
6 - 24 046-006272-00 A7™ Service Manual
4. Unscrew the two screws fastening the high-pressure protection cover to remove the protection
cover.

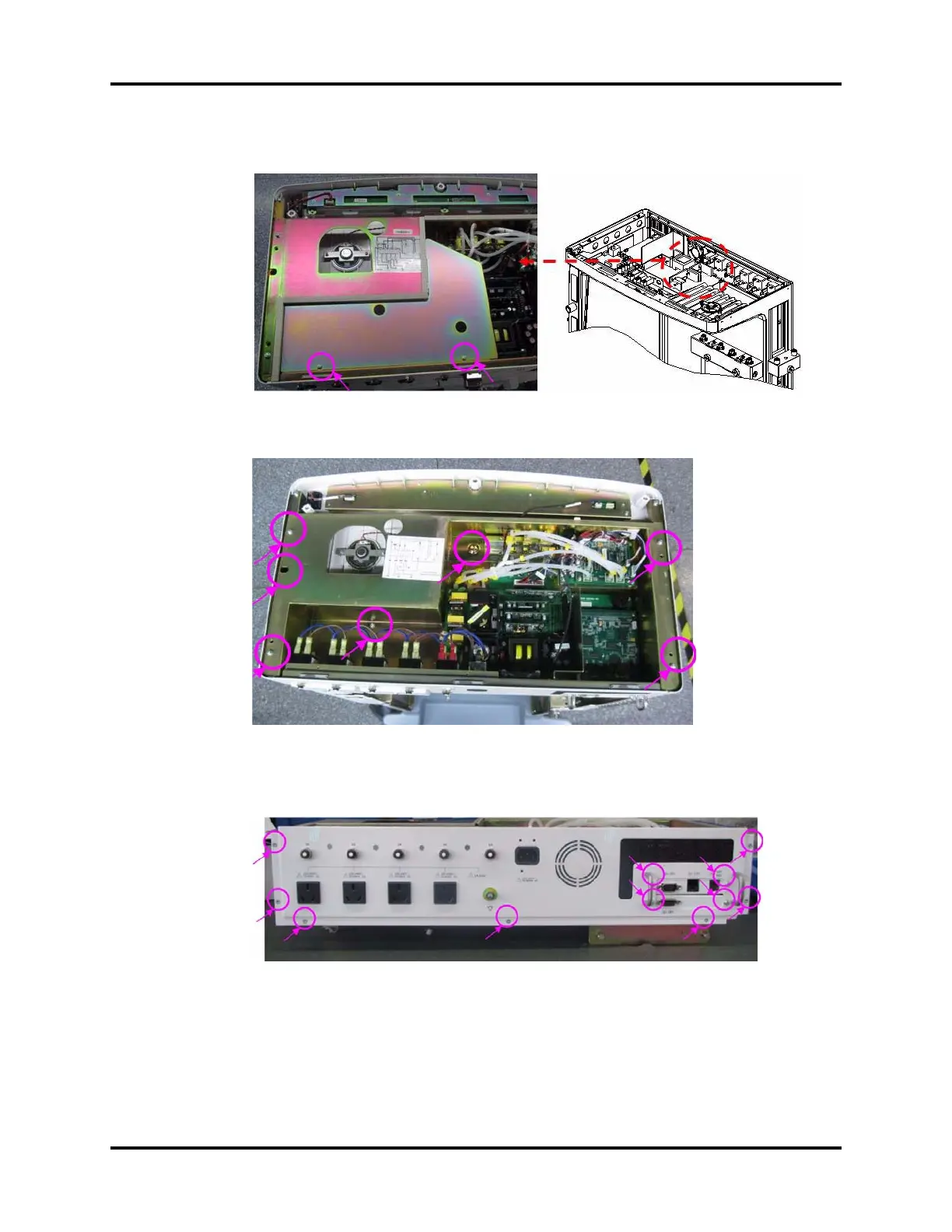

FIGURE 6-44
5. Unscrew the seven screws on the hardware box and lift off the hardware box to remove it.
FIGURE 6-45
6. Remove related cables on the rear panel assembly from other assemblies
7. Unscrew the elevn screws on the rear panel of hardware box to remove the rear panel assembly.
FIGURE 6-46
