Mindray A7 Service Manual

A7™ Service Manual 046-006272-00 6 - 25
Repair and Disassembly Disassemble the Assemblies
Remove the Fan
1. Remove the rear panel of hardware box.
2. Unscrew the four screws on the fan to remove the fan.

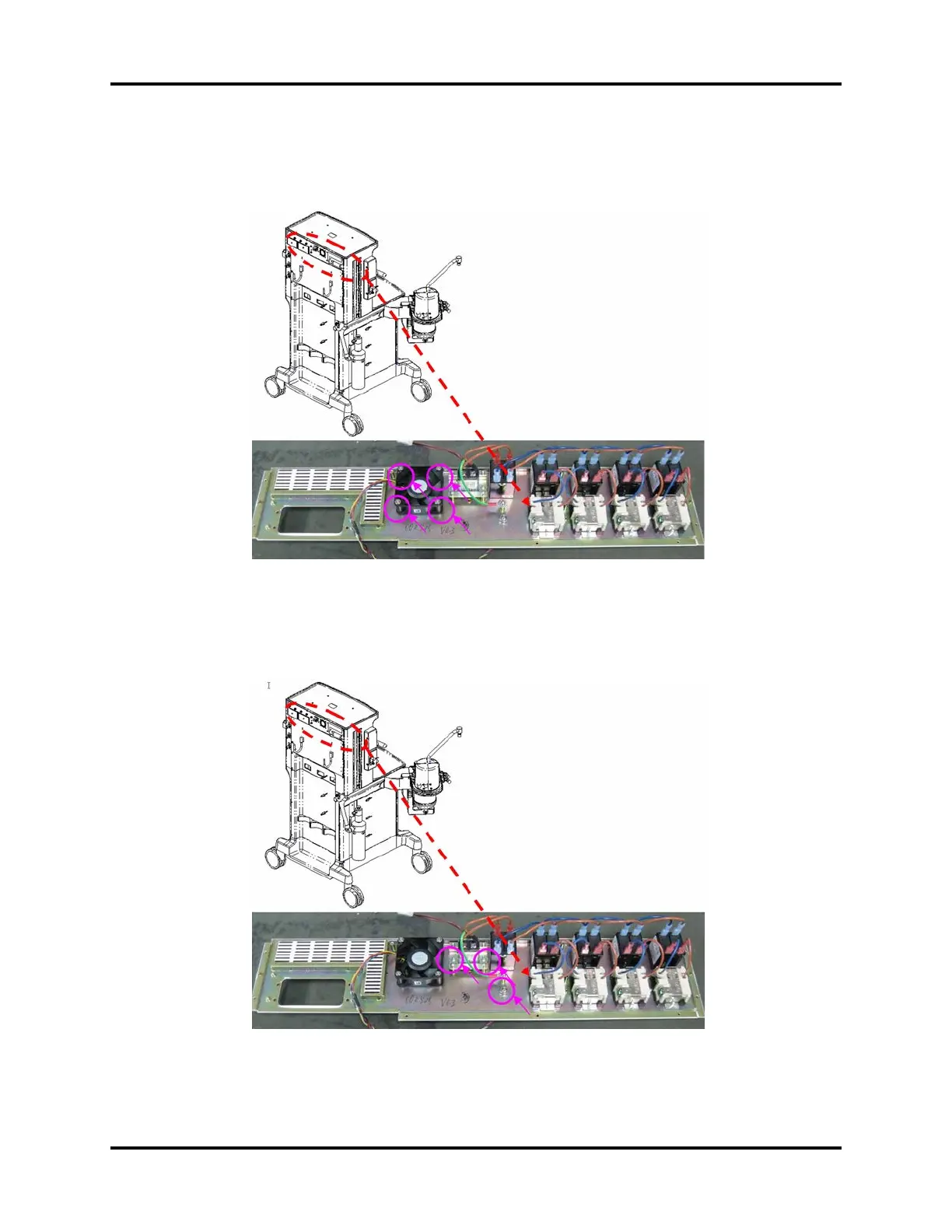

FIGURE 6-47
Remove the Filter
1. Remove the rear panel assembly of hardware box.
2. Unscrew the five screws on the filter to remove the filter.
FIGURE 6-48

Mindray A7 Specifications

General

Type	Anesthesia Workstation
Brand	Mindray
Model	A7
Display	15-inch color touchscreen
Oxygen Flush	Yes
Gas Inlets	O2, N2O, Air
Ventilation Modes	SIMV, PSV
Breathing System	Integrated
Gas Monitoring	O2, CO2, N2O
Monitoring Parameters	FiO2
CO2 Monitoring	Mainstream or Sidestream
Power Supply	100-240 V, 50/60 Hz
