Disassemble the Assemblies Repair and Disassembly
6 - 30 046-006272-00 A7™ Service Manual

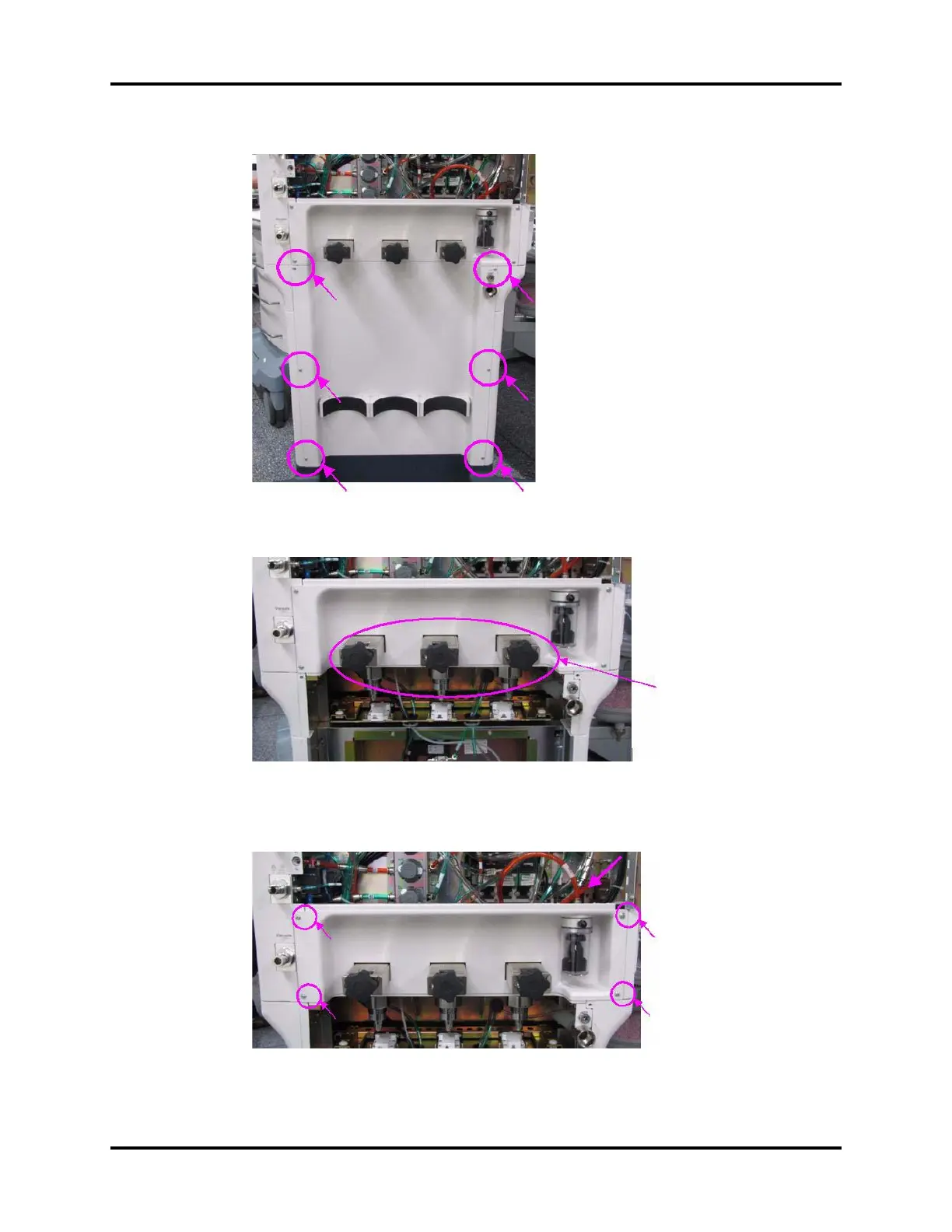

4. Unscrew the six screws on the lower rear panel assembly to remove it.
FIGURE 6-57
5. Remove the pentagonal knob on the cylinder yoke assembly
FIGURE 6-58
6. Unplug the tube connected to the overfill protection cup.Unscrew the four screws on the upper
rear panel (yoke cover) to remove it.
FIGURE 6-59
