Mindray A7 Service Manual

A7™ Service Manual 046-006272-00 6 - 31
Repair and Disassembly Disassemble the Assemblies
6.2.3.5 Remove the Expiration Valve Assembly
1. Remove the work surface cover plate.
2. Unplug the tubes from the expiration valve assembly.

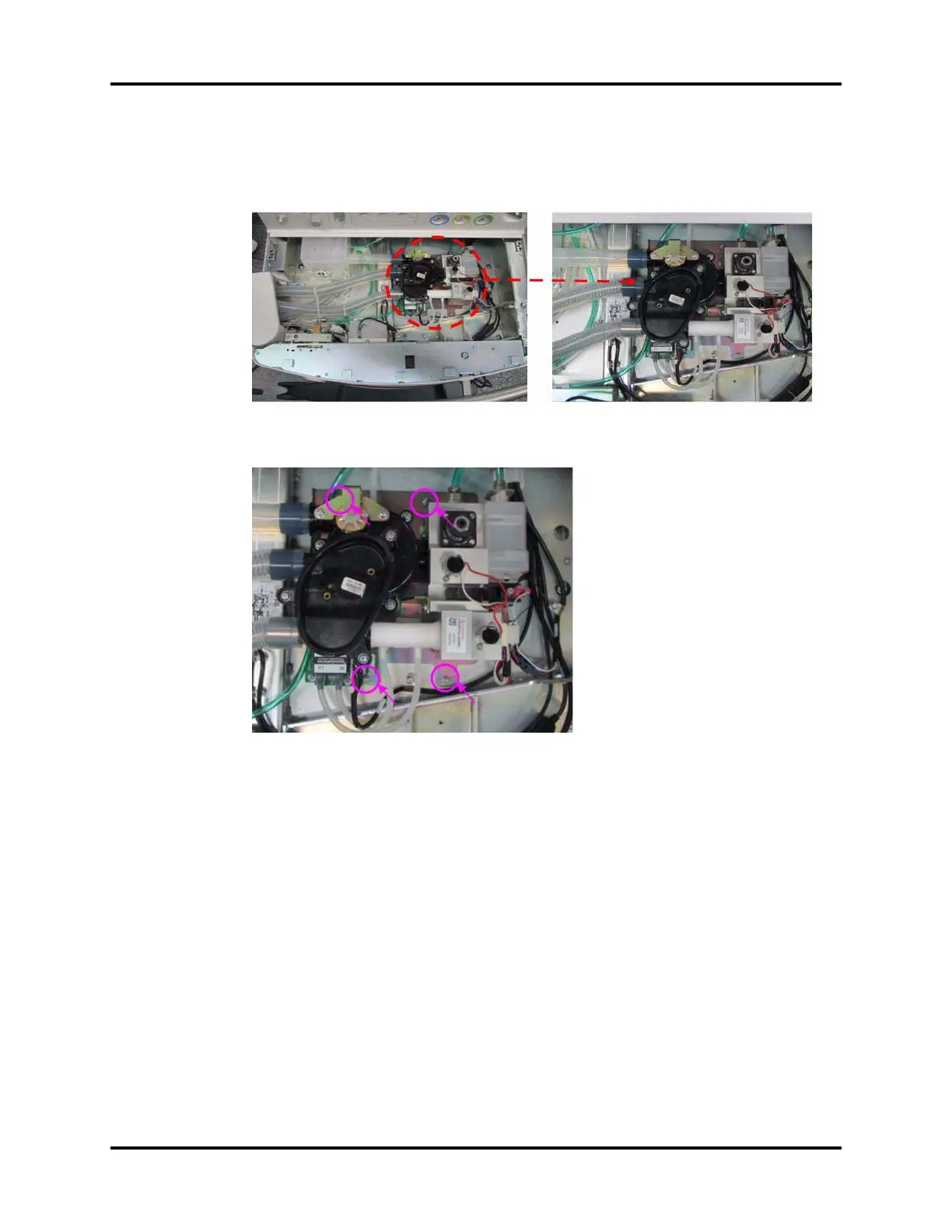

FIGURE 6-60
3. Unscrew the four screws on the expiration valve assembly to remove the assembly.
FIGURE 6-61
6.2.3.6 Remove the O2 Flush Assembly
1. Remove the work surface cover plate and refer to “Remove the Work Surface Cover Plate” on
page 6-28..
2. Remove the metal cover plate and refer to “Remove the Metal Cover Plate” on page 6-29..
3. Unplug the tubes from the O2 flush assembly.

Mindray A7 Specifications

General

Type	Anesthesia Workstation
Brand	Mindray
Model	A7
Display	15-inch color touchscreen
Oxygen Flush	Yes
Gas Inlets	O2, N2O, Air
Ventilation Modes	SIMV, PSV
Breathing System	Integrated
Gas Monitoring	O2, CO2, N2O
Monitoring Parameters	FiO2
CO2 Monitoring	Mainstream or Sidestream
Power Supply	100-240 V, 50/60 Hz
