Disassemble the Assemblies Repair and Disassembly
6 - 40 046-006272-00 A7™ Service Manual

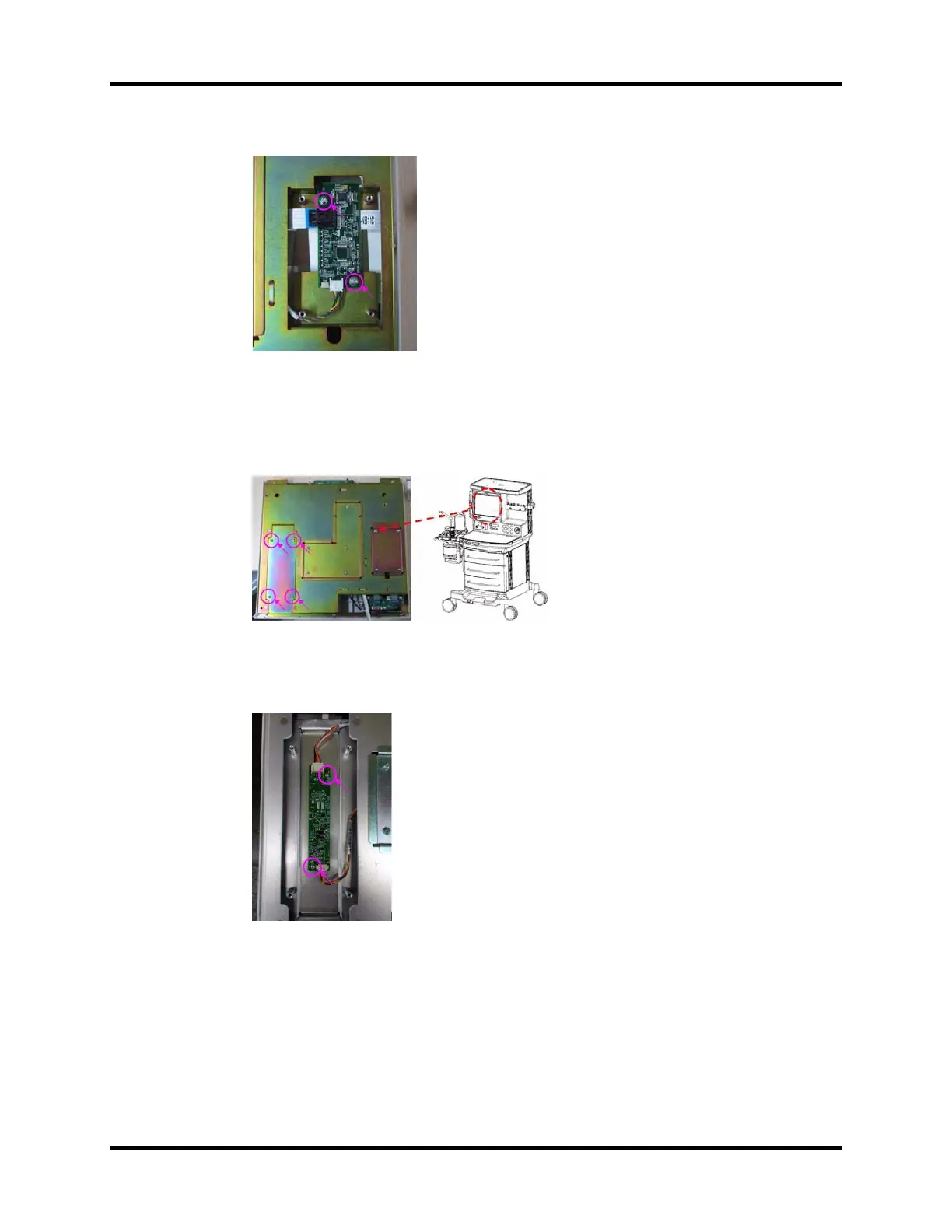

4. Unscrew the two screws on the touch screen control board to remove the board.
FIGURE 6-83
6.2.5.4 Remove the Backlight Inverter Board
1. Remove display assembly.
2. Unscrew the four screws and the cover plate of the backlight inverter board.
FIGURE 6-84
3. Unplug the related cables from the backlight inverter board.
4. Unscrew the two screws on the backlight inverter board to remove the board.
FIGURE 6-85
