Mindray A7 Service Manual

Disassemble the Assemblies Repair and Disassembly
6 - 42 046-006272-00 A7™ Service Manual

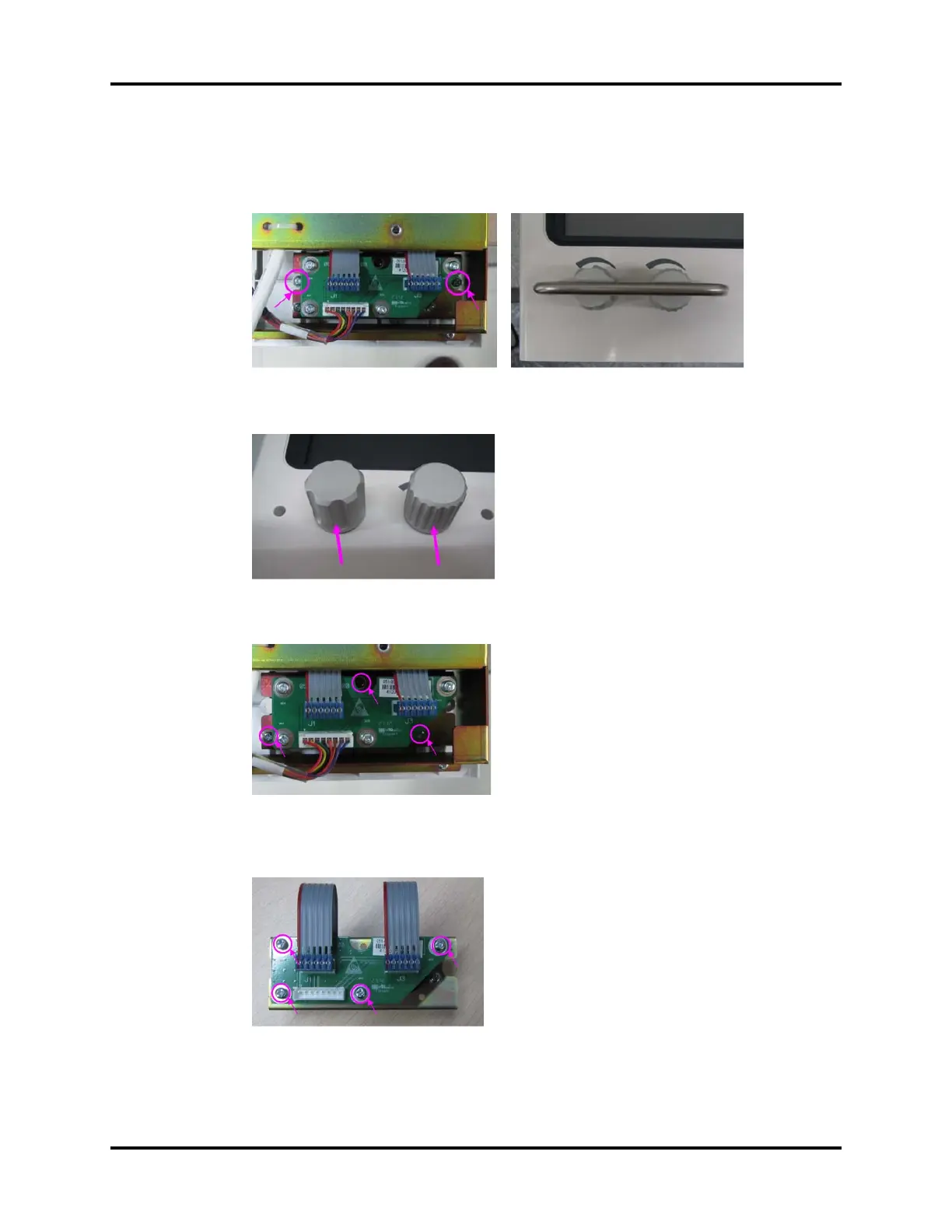

6.2.5.6 Remove the Encoder Assembly
1. Remove the display assembly and refer to “Remove the Display” on page 6-45.
2. Unscrew the two screws on the encoder knob protection bar to remove the protection bar.
FIGURE 6-88
3. Unplug the encoder knob assembly.
FIGURE 6-89
4. Unscrew the three screws to remove the encoder assembly.
FIGURE 6-90
5. Unplug the related cables from the encoder board and unscrew the four screws to remove the
encoder board.
FIGURE 6-91
