A7™ Service Manual 046-006272-00 6 - 43
Repair and Disassembly Disassemble the Assemblies

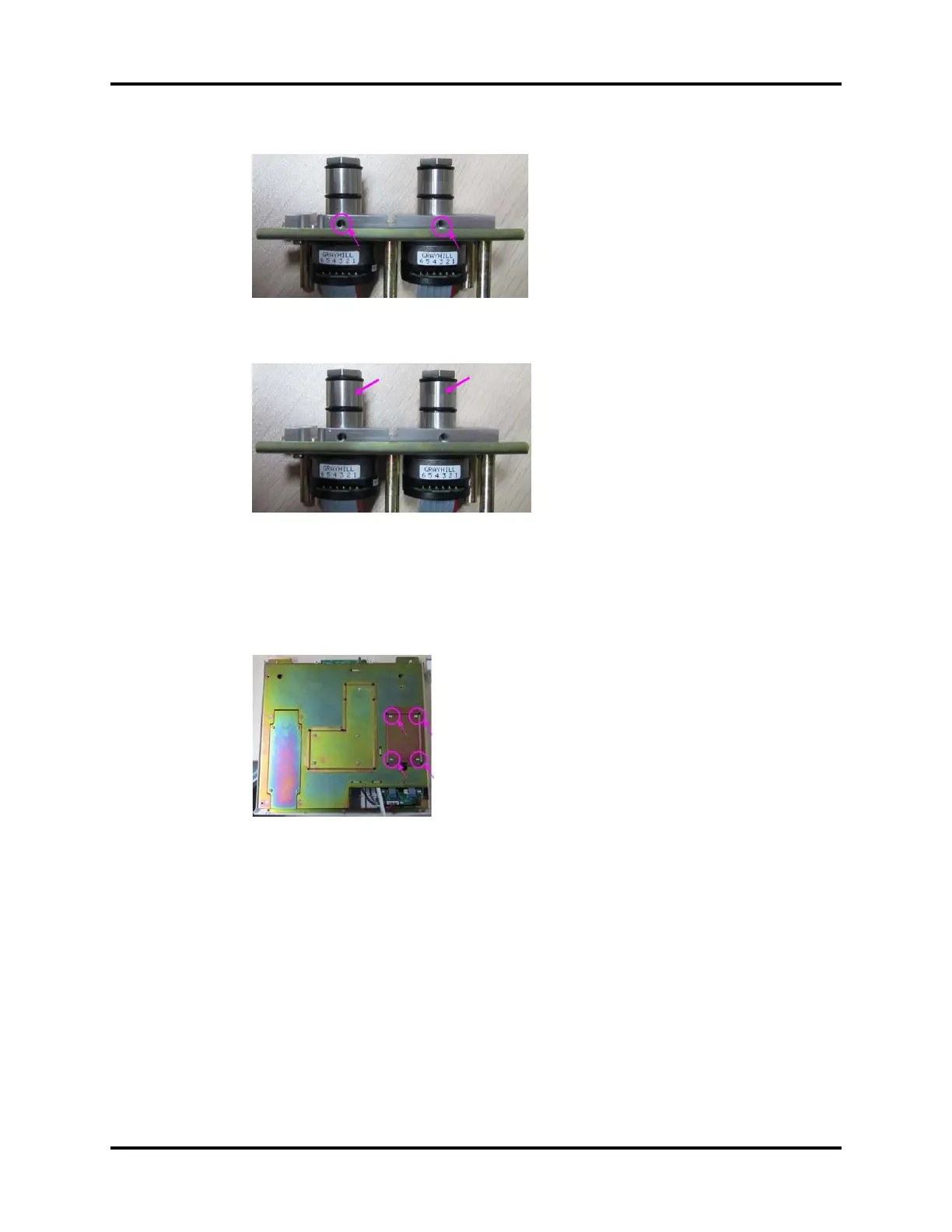

6. Unscrew the two set screws.
FIGURE 6-92
7. Unscew the two encoder fixation stud and remove the encoder.
FIGURE 6-93
6.2.5.7 Remove the Touch Screen
1. Remove the display assembly.
2. Unscrew the four screws on the cover plate of the touchscreen control board to remove the
cover plate..
FIGURE 6-94
