Disassemble the Assemblies Repair and Disassembly
6 - 50 046-006272-00 A7™ Service Manual
9. Unscrew the three screws from the back of the machine and fully loosen the captive screw.

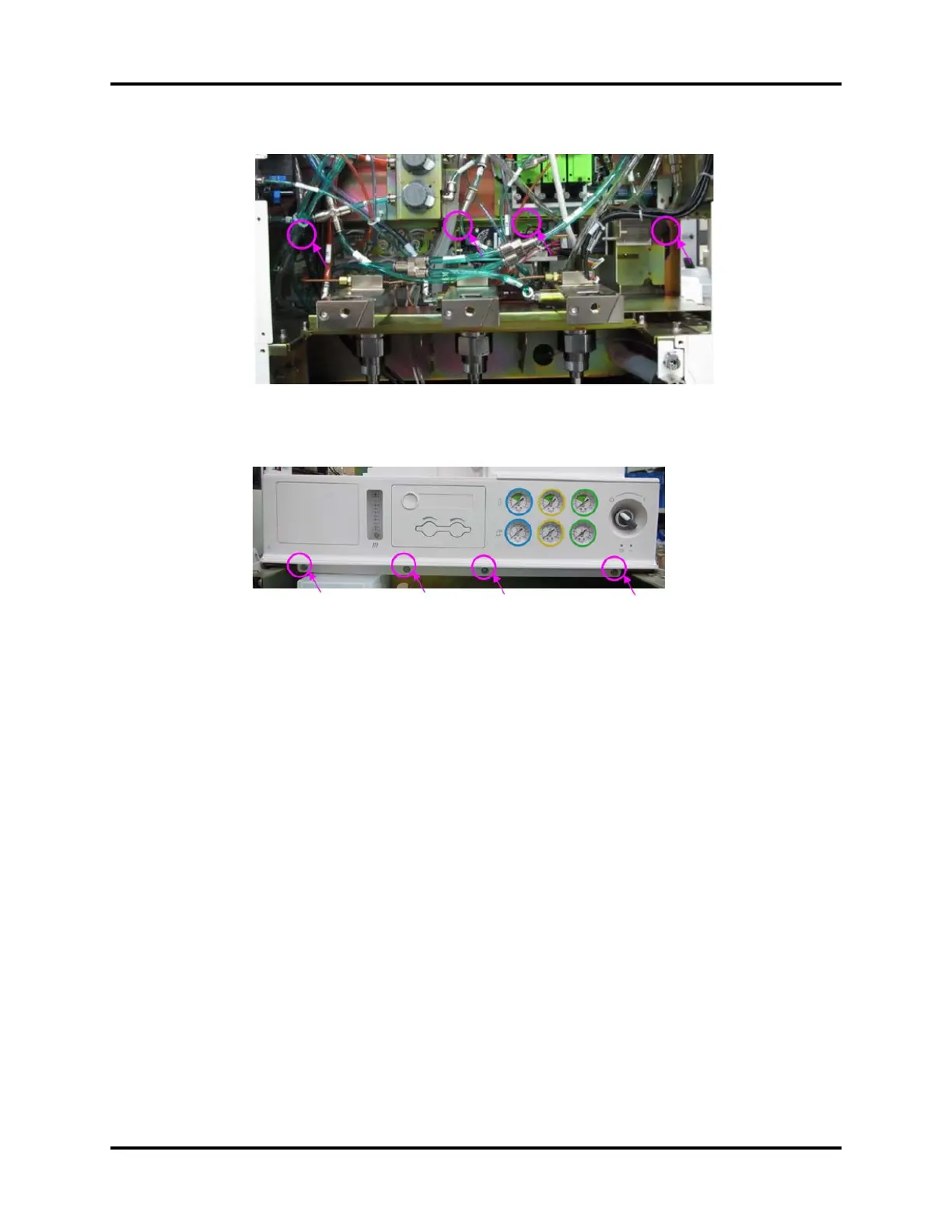

FIGURE 6-110
10. Unscrew the four screws on the gauge panel to remove the panel. When taking out the gauge
panel, note that high pressure test tube shall avoid the internal tubes and cables of the machine.
FIGURE 6-111
