A7™ Service Manual 046-006272-00 6 - 51
Repair and Disassembly Disassemble the Assemblies

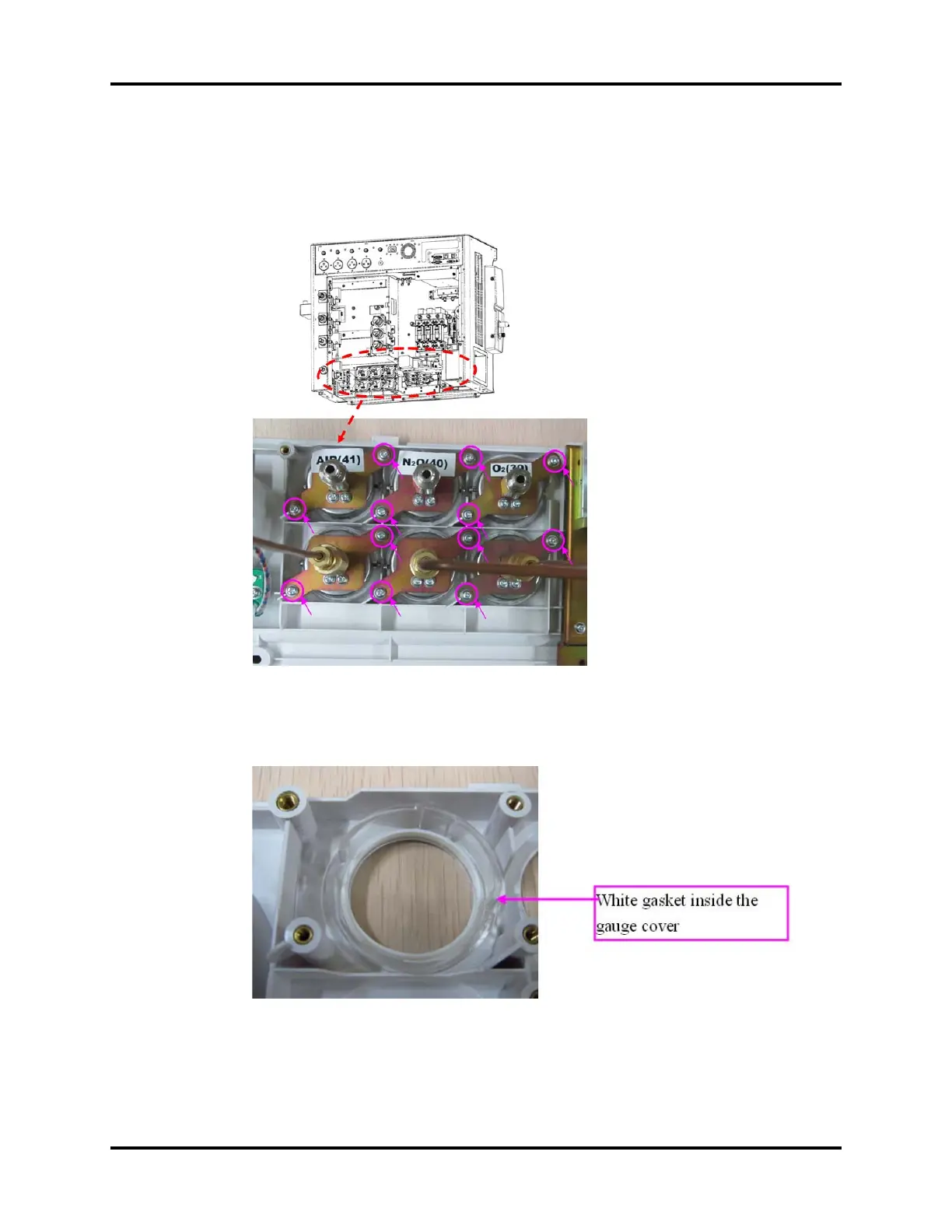

6.2.8.1 Remove the Pressure Gauges
1. Remove the pressure gauge panel.
2. Unscrew the two screws from the pressure gauge and remove gas supply pressure gauge and
high-pressure gauge..
FIGURE 6-112
3. If replacing the pressure gauge cover is necessary, take out the white gasket inside the gauge
cover. Then remove the gauge cover from the gauge panel. Before replacement, clear the
residual adhesive strip on the gauge panel.
FIGURE 6-113
