Disassemble the Assemblies Repair and Disassembly
6 - 52 046-006272-00 A7™ Service Manual
6.2.8.2 Remove the Total Flowmeter
1. Remove the panel of the pressure gauge and refer to “Remove the Panel of Pressure Gauges” on
page 6-49..
2. Unscrew the four screws on the total flowmeter and to remove it.

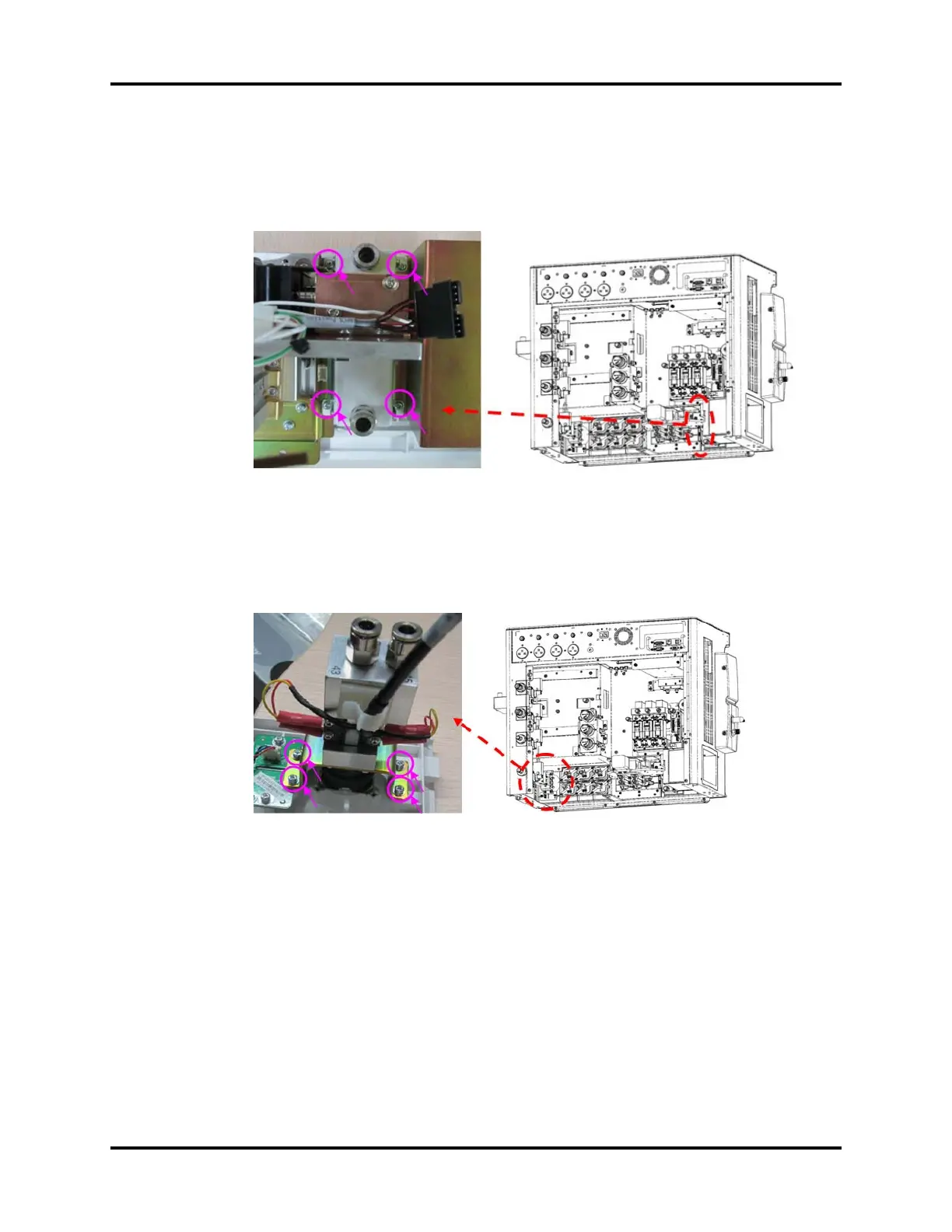

FIGURE 6-114
6.2.8.3 Remove the System Switch
1. Remove the panel of the pressure gauge and refer to “Remove the Panel of Pressure Gauges” on
page 6-49..
2. Unscrew the four screws on the system switch to remove the switch.
FIGURE 6-115
