A7™ Service Manual 046-006272-00 6 - 55
Repair and Disassembly Disassemble the Assemblies

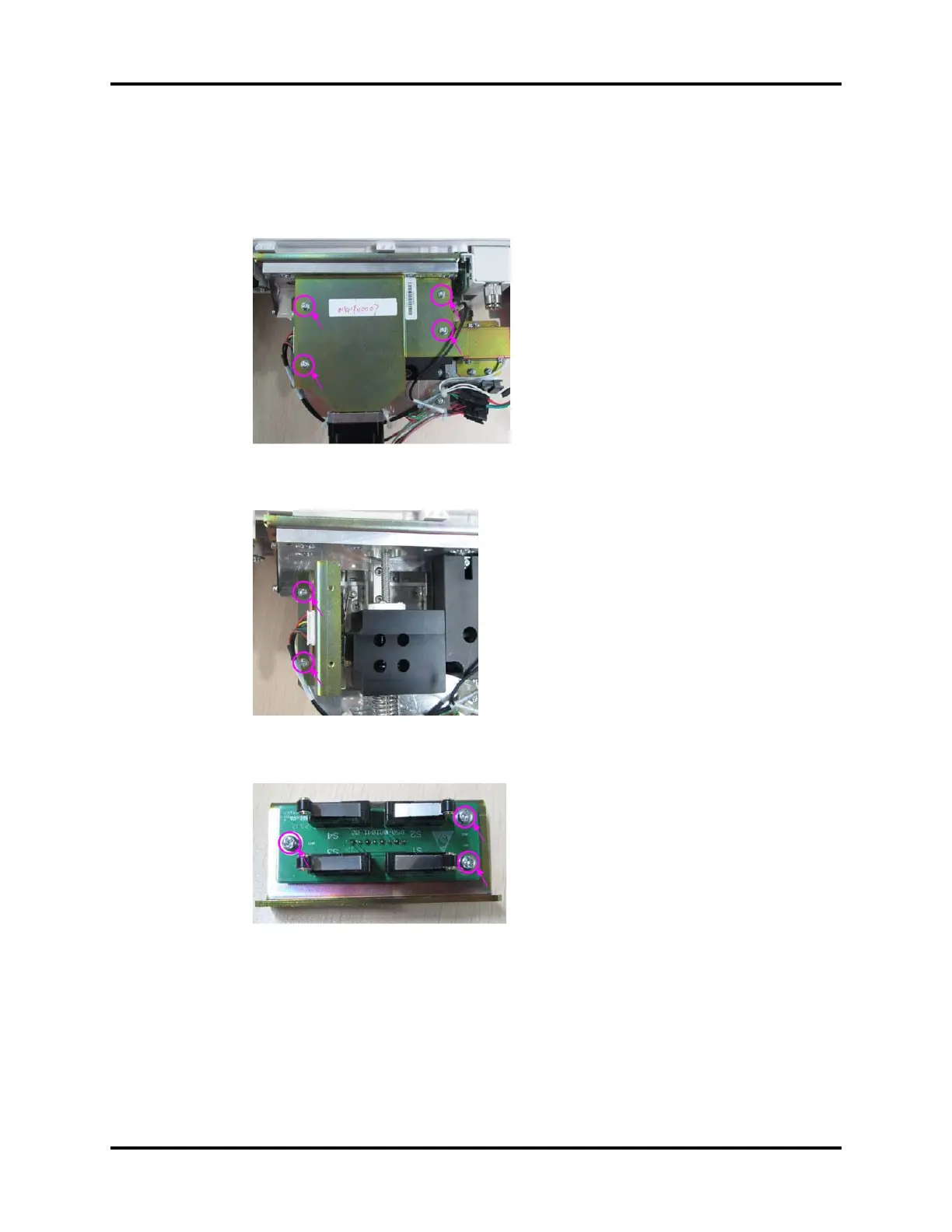

6.2.8.7 Remove the Motor Position Check Board
1. Remove the panel of the pressure gauge and refer to 6.2.8.
2. Disconnect the cable from the motor position check board.
3. Unscrew the four screws to remove the protective shield.
FIGURE 6-119
4. Unscrew the two screws to remove the motor position check board and metal sheet.
FIGURE 6-120
5. Unscrew the three screws to remove the motor position check board.
FIGURE 6-121

Mindray A7 Specifications

General

Type	Anesthesia Workstation
Brand	Mindray
Model	A7
Display	15-inch color touchscreen
Oxygen Flush	Yes
Gas Inlets	O2, N2O, Air
Ventilation Modes	SIMV, PSV
Breathing System	Integrated
Gas Monitoring	O2, CO2, N2O
Monitoring Parameters	FiO2
CO2 Monitoring	Mainstream or Sidestream
Power Supply	100-240 V, 50/60 Hz
