Mindray A7

Disassemble the Assemblies Repair and Disassembly
6 - 68 046-006272-00 A7™ Service Manual
6.2.17.2 Remove the Brake Indicator Drive Plate I and II
1. Tilt A7 backward.

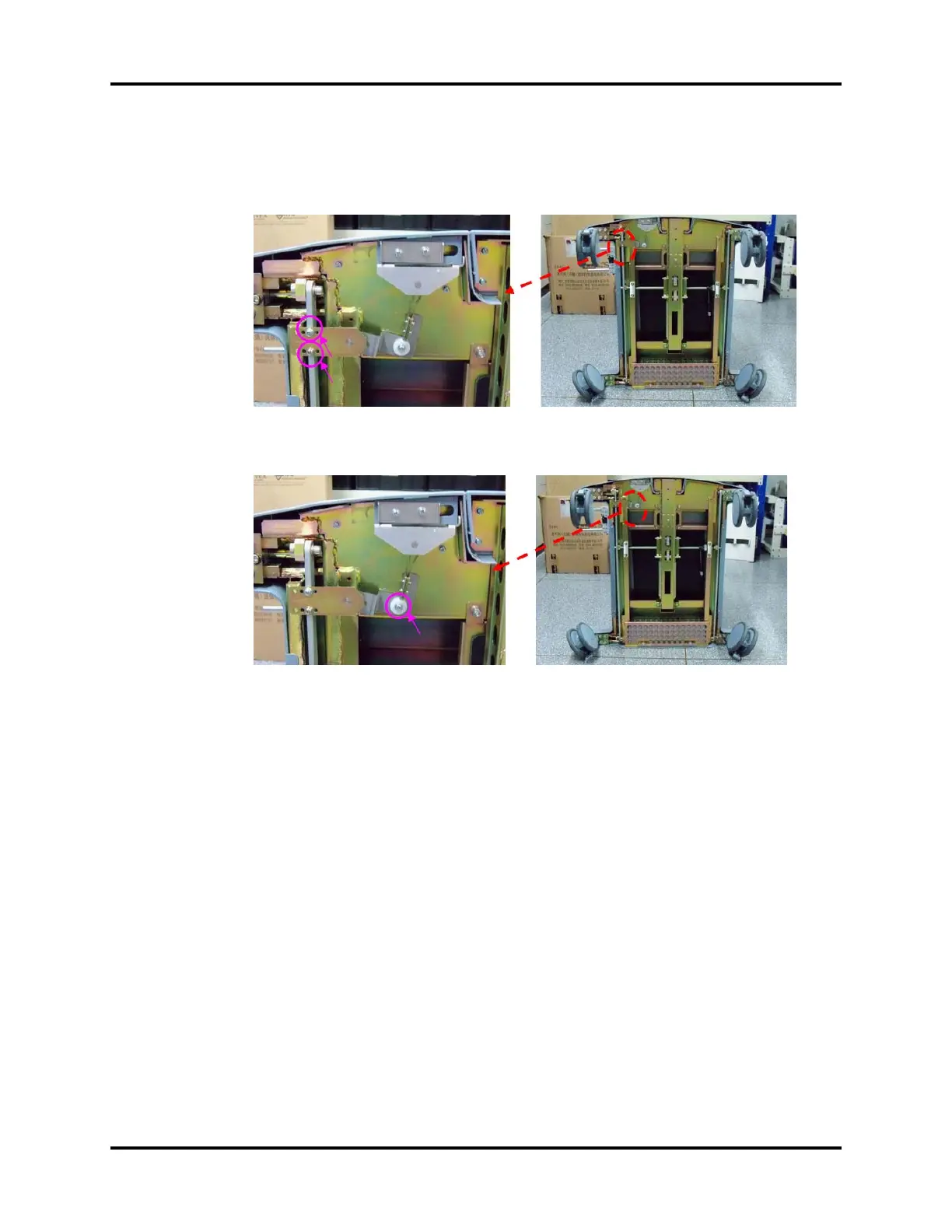

2. Unscrew the two screws on the brake indicator drive plate I to remove the plate.
FIGURE 6-148
3. Unscrew the one screw on the brake indicator drive plate II to remove the plate.
FIGURE 6-149
