A7™ Service Manual 046-006272-00 6 - 69
Repair and Disassembly Disassemble the Assemblies

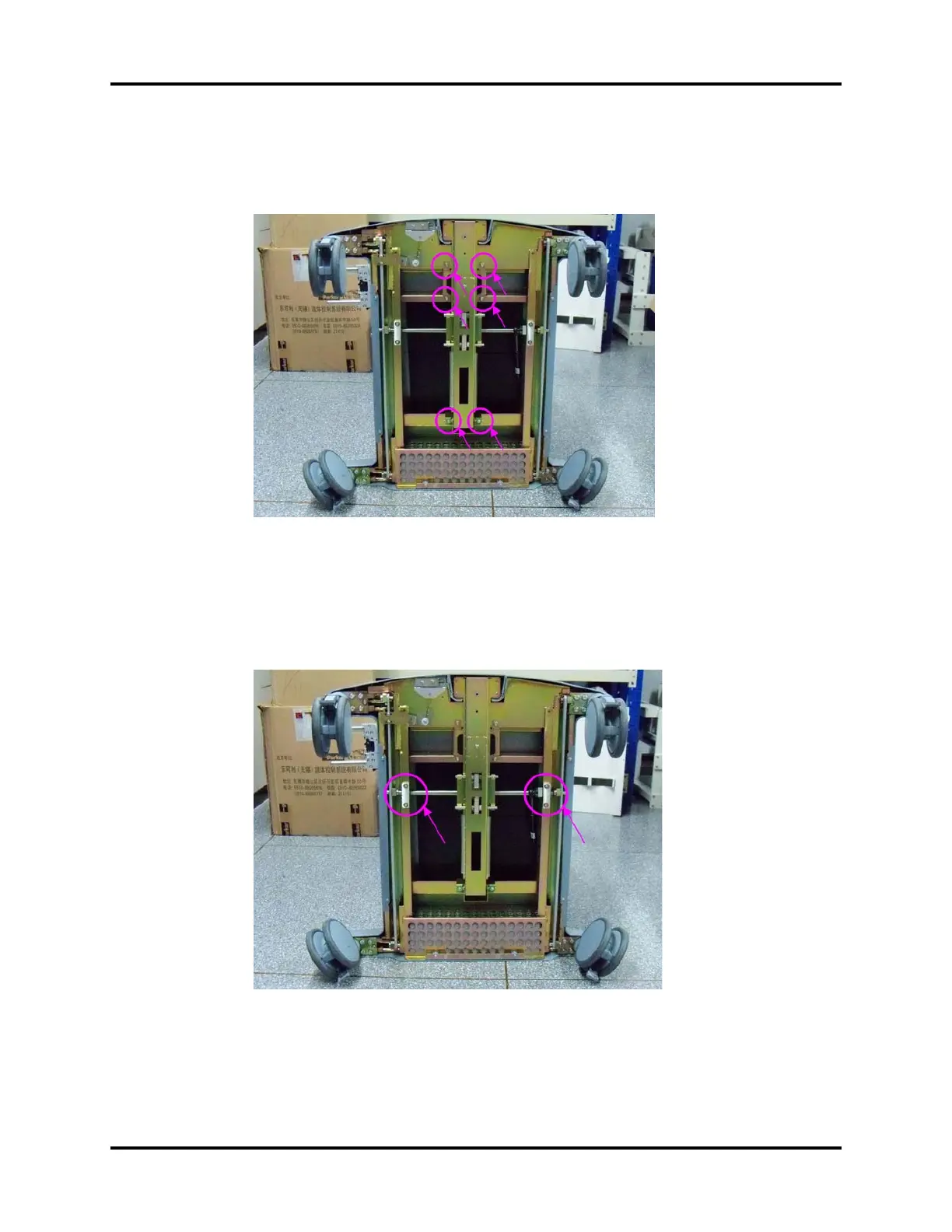

6.2.17.3 Remove the Brake Assembly
1. Tilt A7 backward.
2. Unscrew the six screws on the brake assembly to remove the assembly.
FIGURE 6-150
6.2.17.4 Remove the Brake Main Axis
1. Tilt A7 backward.
2. Remove brake assembly.
3. Unscrew the six screws and remove the brake main axis.
FIGURE 6-151
