A7™ Service Manual 046-006272-00 7 - 9
Replacement Parts Introduction
7.1.2.4 A7 Work Surface

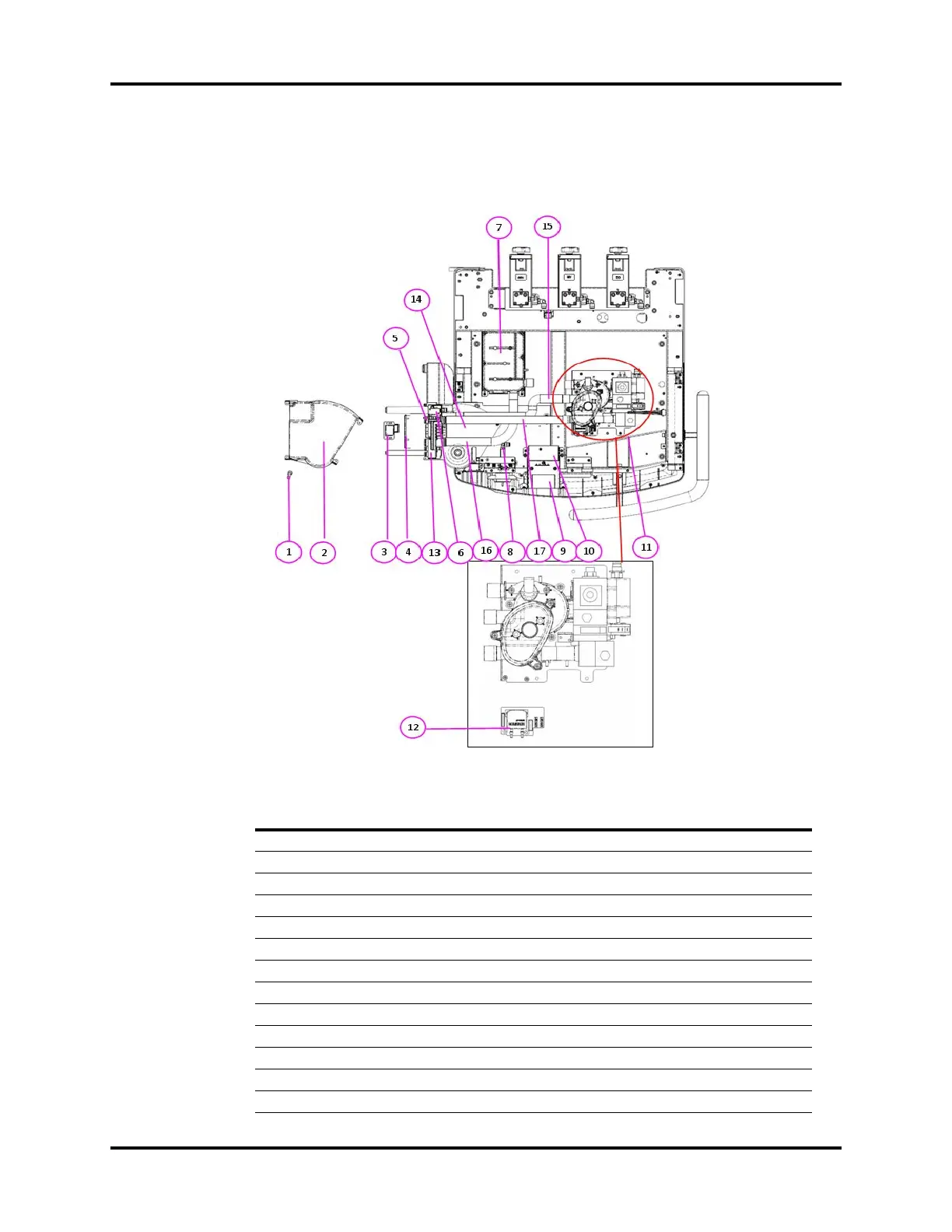

FIG.NO. DESCRIPTION (English) PART NUMBER
1 O2 sensor connector 801-0631-00067-00
2 Docking Station Cover 115-027246-00
3 Auto/Manual pin 801-0631-00113-00
4 Circuit Heater 115-034450-00
5 Auto/Manual spring 801-0631-00114-00
6 Limit switch 801-0631-00101-00
7 Gas reservoir assembly 801-0616-00007-00
8 O2 Flush Assembly 801-0631-00044-00
9 Touchpad 801-0631-00052-00
10 Track Pad Module 115-017032-00
11 Driver gas assembly (A7) 115-026819-00
12 Sensor interface board PCBA 801-0631-00089-00
13 Docking station plate 041-006279-00
To Next Page
