A7™ Service Manual 046-006272-00 7 - 15
Replacement Parts Introduction

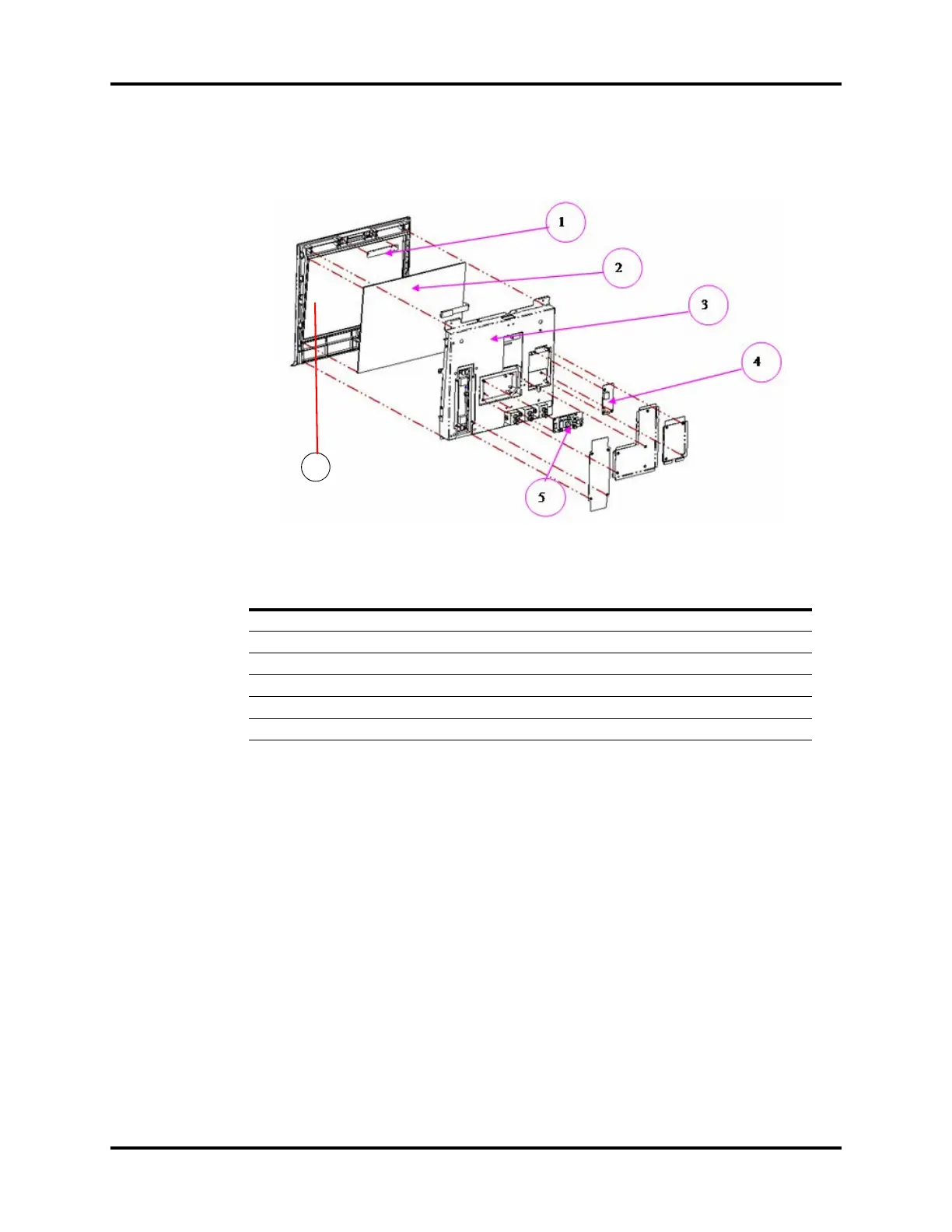

7.1.2.9 A7 Main Body of Display Assembly
FIG.NO. DESCRIPTION PART NUMBER
1 Alarm lamp board PCBA 801-0631-00019-00
2 Touchscreen 801-0631-00014-00
3 Display exchange package A7 115-039181-00
4 Touchscreen control board 801-0631-00018-00
5 Display interface board PCBA (0632) 051-001258-00
6 Display panel 043-002982-01
6
