Replacement Parts Introduction

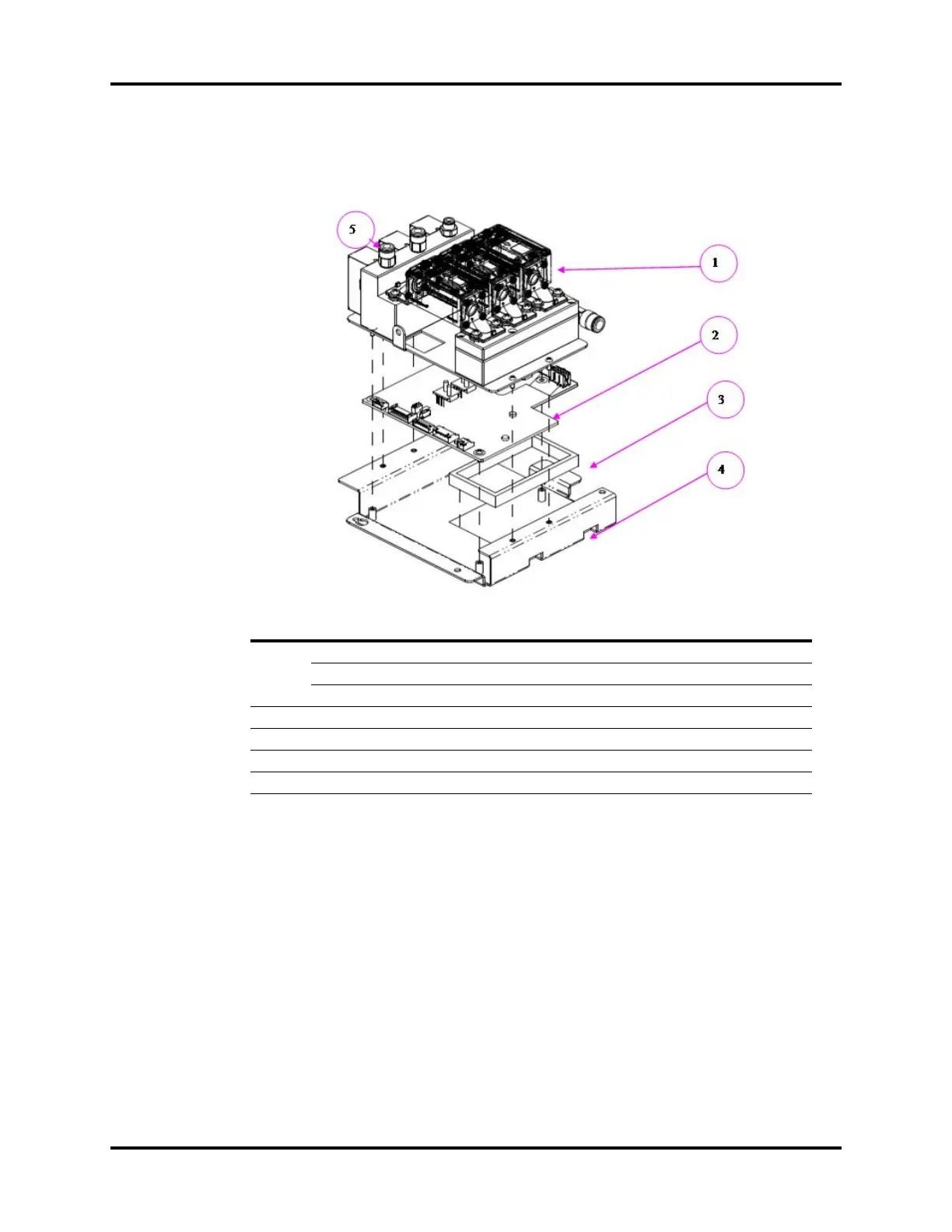

7.1.2.11 EFCS Assembly
FIG.NO. DESCRIPTION PART NUMBER
1
O2 flow sensor adapter board PCBA of the flowmeter (A7) 051-001414-01
N2O flow sensor adapter board PCBA of the flowmeter (A7) 051-001416-01
Air flow sensor adapter board PCBA of the flowmeter (A7) 051-001415-01
2 EFCS control board 115-018150-00
3 Isolation pad of the EFCS control board (A7) 048-002801-00
4 Flow sensor holder (A7) 042-005334-00
5 Proportional valve assembly of the EFCS 115-018143-00
