Mindray A7

Gas Flow Theory of Operation
1 - 34 046-006272-00 A7™ Service Manual

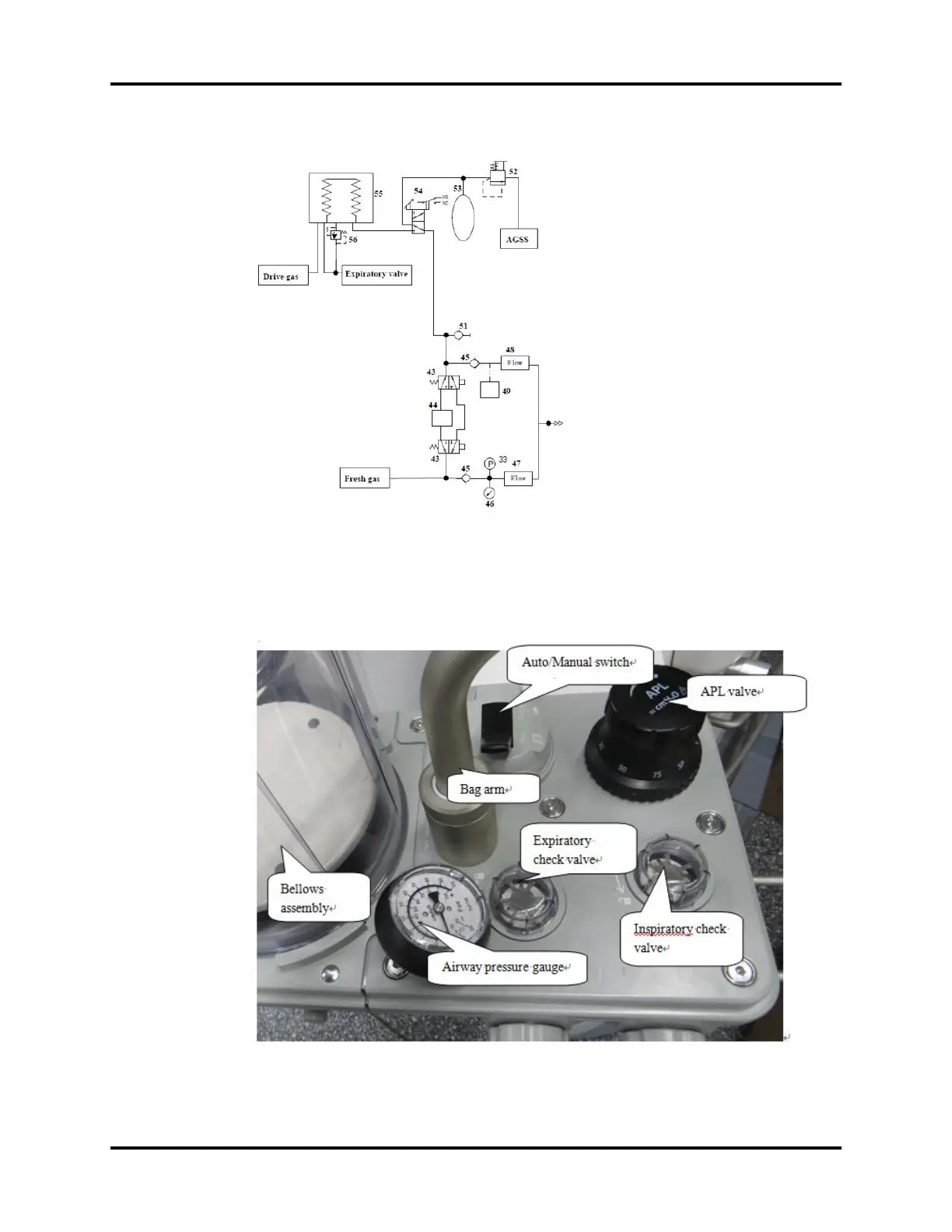

FIGURE 1-35
The breathing system is connected to the anesthesia machine main unit through the circuit adapter.
The breathing system is highly integrated, as its tubes are all internal as shown in the following figure.
FIGURE 1-36
