A7™ Service Manual 046-006272-00 1 - 35
Theory of Operation Gas Flow

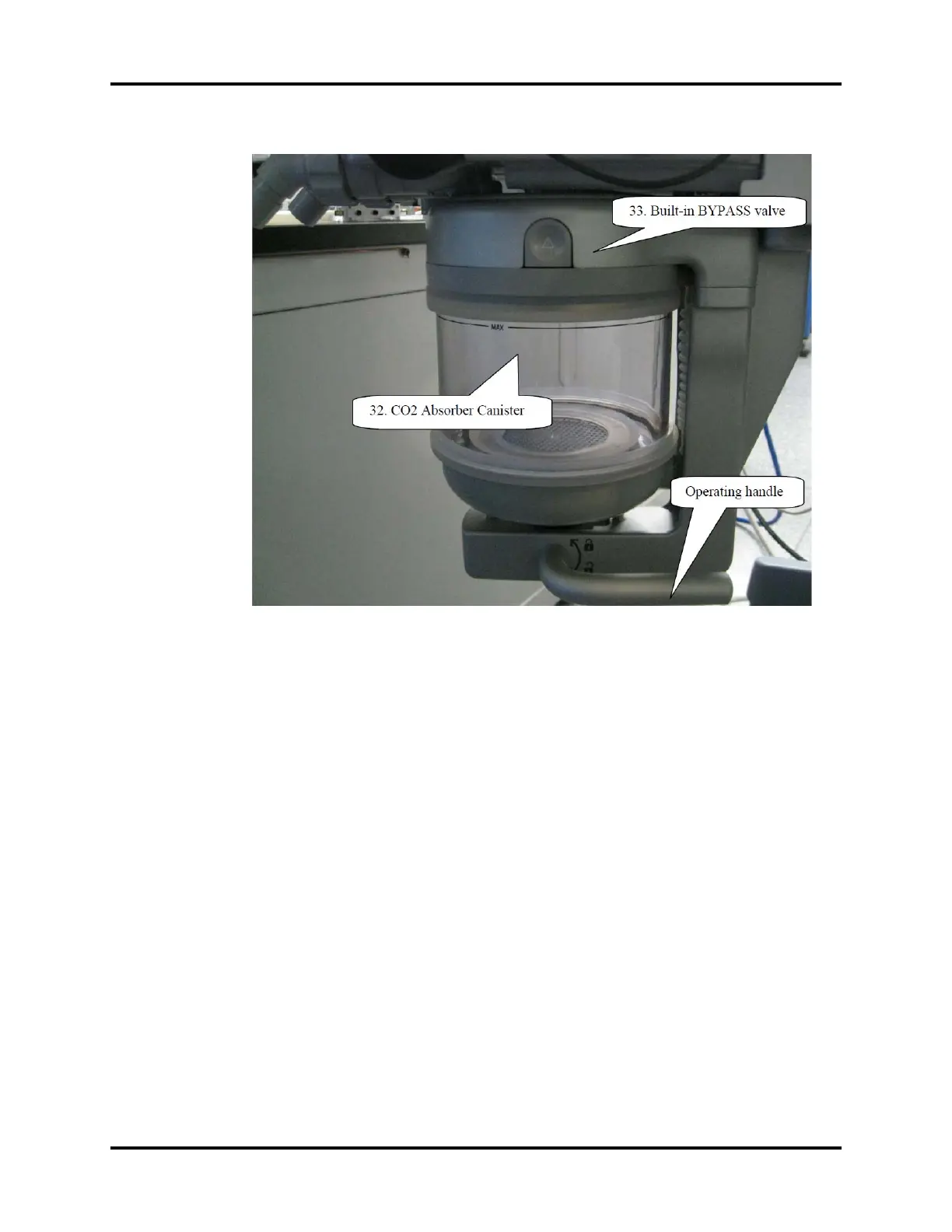

FIGURE 1-37
Mechanical and manual ventilation modes are selected through the Auto/Manual ventilation switch.
Excess water condensed from the exhaled gas is collected in the water collection cup, located on the
bottom side of the breathing system.
The breathing system is easily disassembled and is autoclavable at 134
o
C.
