Installing Your Analyzer
4-6
（Figure 4-1）;

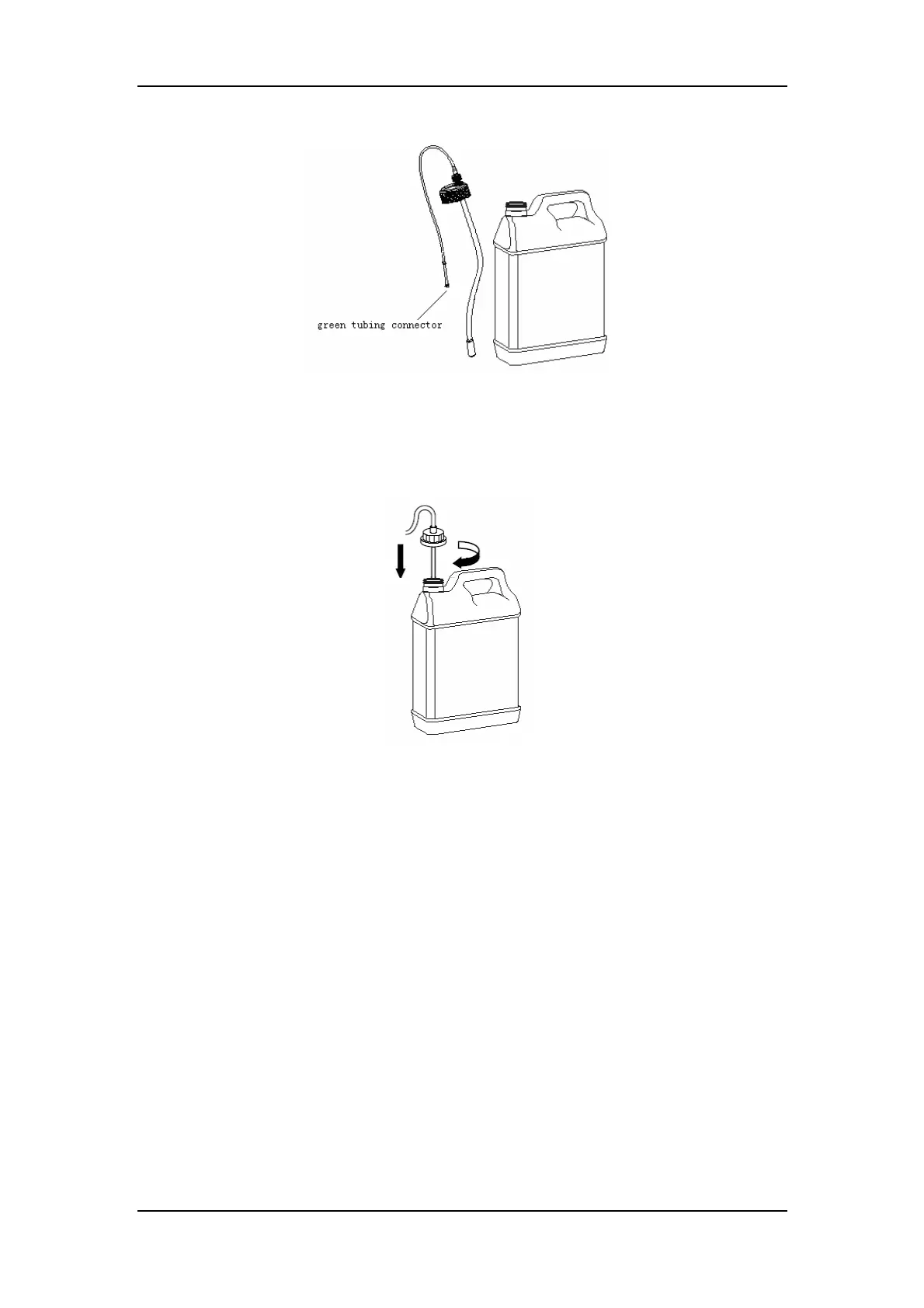

Figure 4-1 Diluent container
2. Take out the diluent container and place it on or below the countertop;
3. Remove the container cap and insert the tube end that has no connector into the diluent
container and tighten the cap until properly secured, as Figure 4-2 shows;
Figure 4-2 Insert the tube end into the container
4. Locate the green fitting marked “DILUENT” in the lower right corner of the back of the
analyzer;
5. Plug the green connector of the tube into the fitting and turn it clockwise until properly
secured.
Connecting the rinse container
1. Take out the rinse pickup tube (the one with a blue connector) from the accessory box, as
Figure 4-3 shows;
