9-26 Structure and Assembly/Disassembly

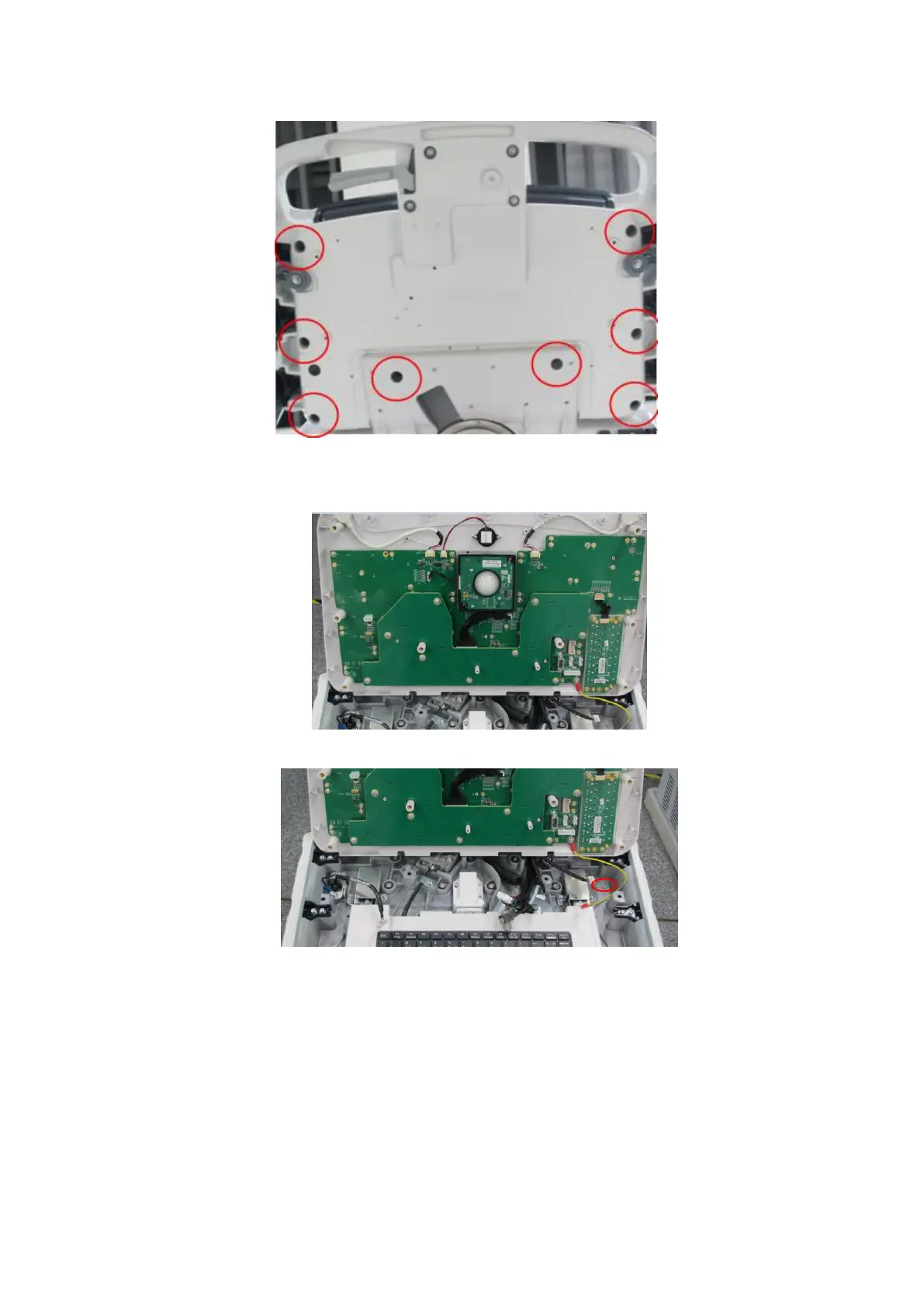

3. Lift the upper cover up around the margin. Disconnect all plugs on the upper cover. The control
panel and the main unit fall apart then.
4. Unscrew the M3 X 8 screw on the cast-aluminum base to remove the control panel assembly.
Operate the following procedures to remove the control panel assembly.
9.3.15.1 Encoder Assembly
The disassembly tool: cross-headed screwdriver (M3, M4), anti-electrostatic glove
1. Remove six big encoder caps and seven small encoder caps.
To Next Page
