Structure and Assembly/Disassembly 9-27

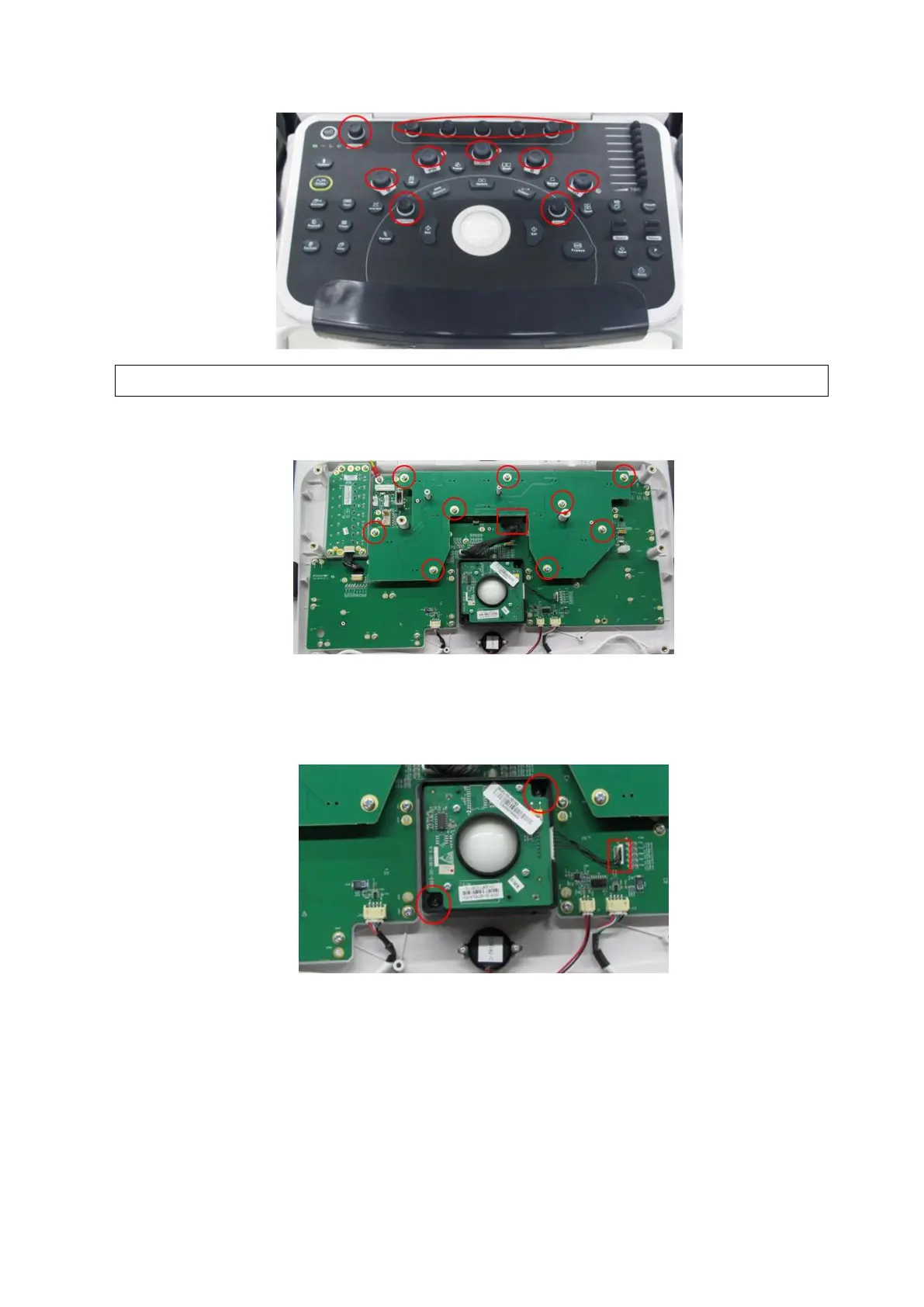

2. Unscrew nine PT4 X 10 tapping screws from the encoder board. Disconnect the plug
connecting the encoder to the keyboard to remove the encoder assembly.
9.3.15.2 Trackball
The disassembly tool: cross-headed screwdriver (M3, M4), anti-electrostatic glove
Unscrew two M3 X 8 SEMS screws fixing the trackball. Disconnect the plug connecting the trackball
and the keyboard to remove the trackball assembly.
9.3.15.3 TCG Board
The disassembly tool: cross-headed screwdriver (M3, M4), anti-electrostatic glove
1. Remove eight caps of TCG sliders.
To avoid incorrect installation, please take notice of the size of caps.
To Next Page
