Mindray Recho R9 User Manual

Image Optimization 5-123

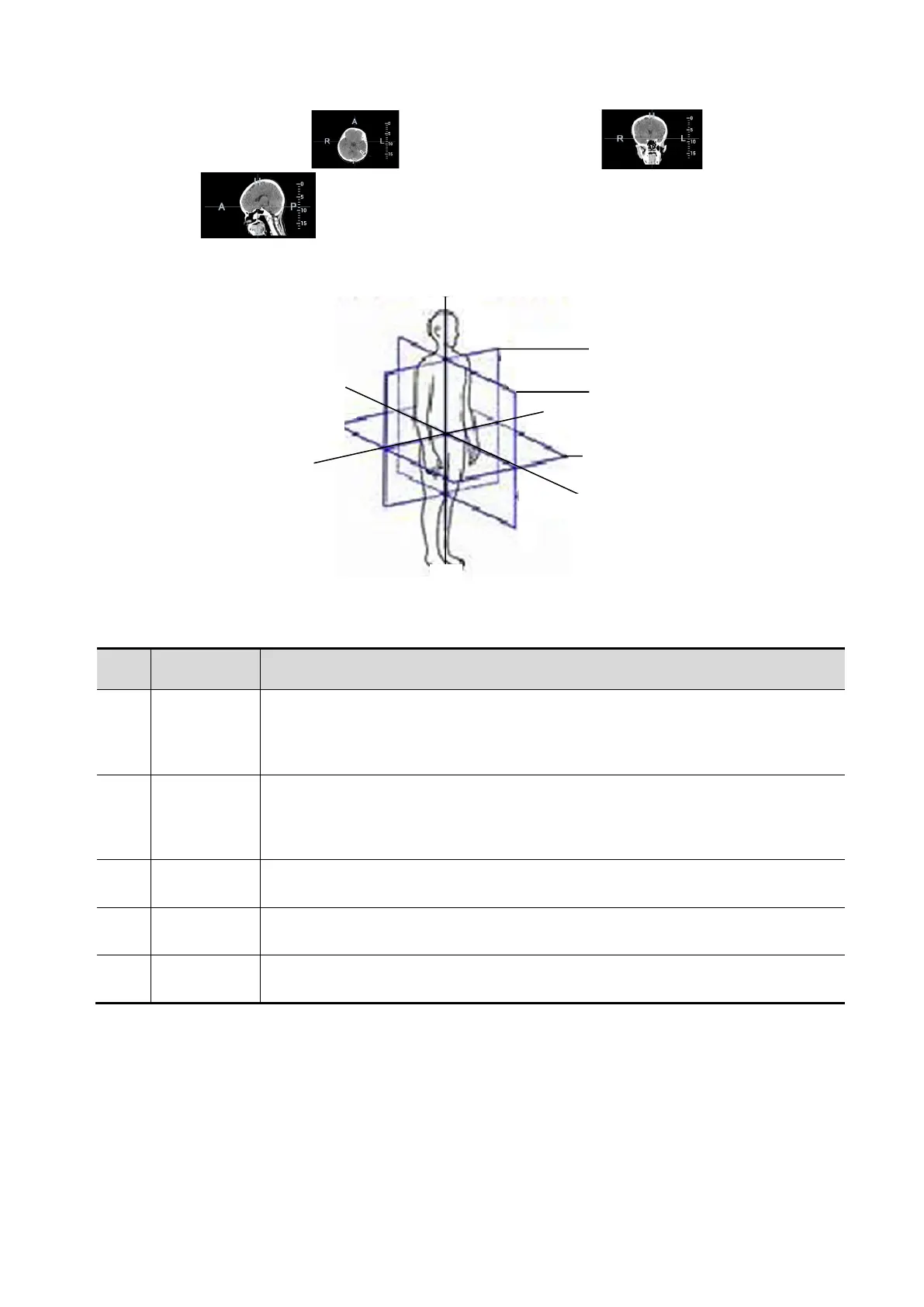

R-L axis on transverse plane , A-P axis on coronal plane and H-F axis on
sagittal plane positioning in human body are shown below:
Five windows descriptions are given below:
No. Image Description
1
Ultrasound
Display
When Fusion Ratio is among -1 to 0, the Ultrasound System registers
CT/MR/PET/freehand image to ultrasound image. The fusion display appears
then. See also Chapter 5.17.10 Parameter Setting for fusion parameter
adjustment.
2
Fusion
Display
When Fusion Ratio is among 0 to 1, the Ultrasound System registers
ultrasound image to CT/MR/PET/freehand image. The fusion display appears
then. See also Chapter 5.17.10 Parameter Setting for fusion parameter
adjustment.
3
Transverse
plane
R, L, A, and P imply the right, left, anterior and posterior of the patient.
4
Coronal
plane
R, L, H, and F imply the right, left, head and foot of the patient.
5
Sagittal
plane
H, F, A, and P imply the head, foot, anterior and posterior of the patient.
Coronal
plane
Sagittal
plane
Transverse
plane
R
P
H
L
A
F
