Mindray Recho R9 User Manual

Probes and Biopsy 13-57
Note:
Be sure to use the section displaying the maximum of the lesion for
marking.
4. The lesion is enveloped by 3 circles from the inside and out: real-time mark, maximum diameter
mark and safety boundary.
 Perform the marking steps repeatedly for multiple marks. Marked color are displayed in green, red
and blue in cycle and result window displays the diameter of the marked circle.
 Refer to chapter “5.17.6 Marks” for details about moving/deleting/displaying/hiding marks.
 Marking procedure under Fusion imaging mode:
Tap [Register CT/MR] and tap [Add Mark]->[Display Mark] to turn on the mark function. Refer to chapter
“5.17.6 Marks” for details.

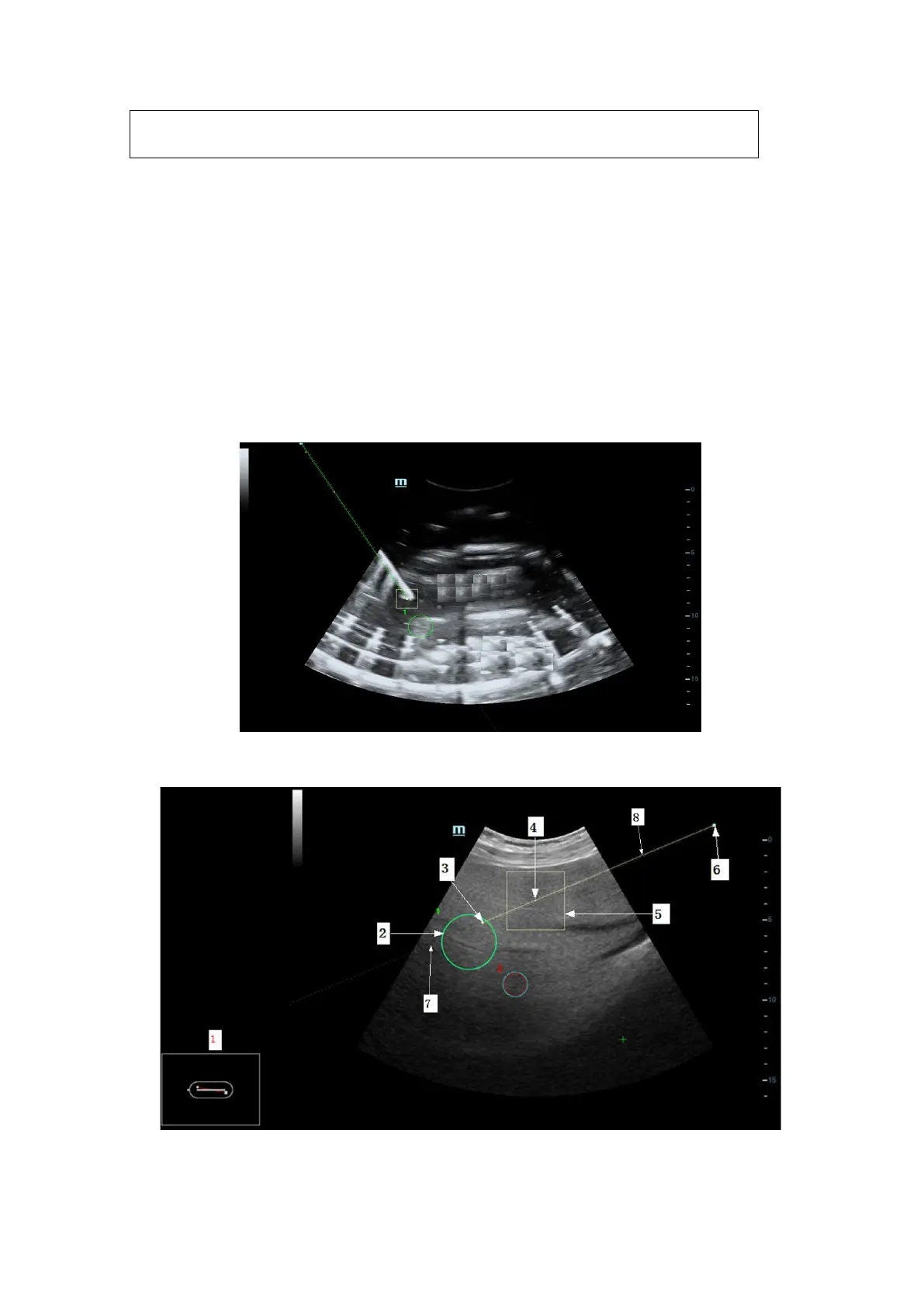

13.3.5 Screen Display in the Guiding
In-plane biopsy
In-plane navigation applies to needle path inside the ultrasound image plane:
Out-plane biopsy
Out-plane navigation applies to needle path not inside the ultrasound image plane.
