Mindray Spectrum - Page 90

Spectrum
®
/Spectrum OR
™
Service Manual 0070-10-0556-02 3 - 31
Isometric Drawings and Part List Comm-Port

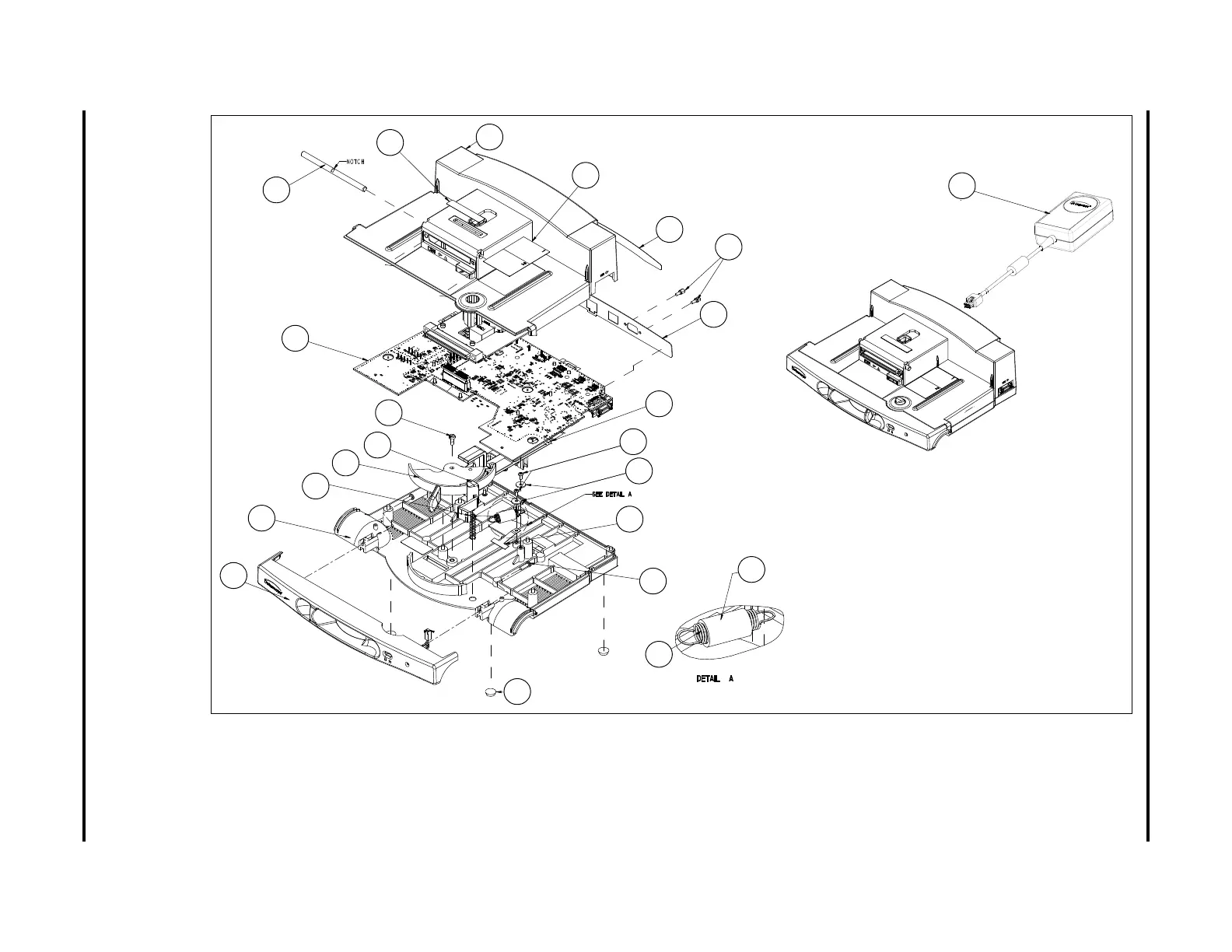

FIGURE 3-22 Base Station
35
1
7
5
9
3
4
2
6
18
24
15
30
28
29
33
20
27
22
26
16
35
32
17
