5-6 Mx100/200 Series Operation Manual

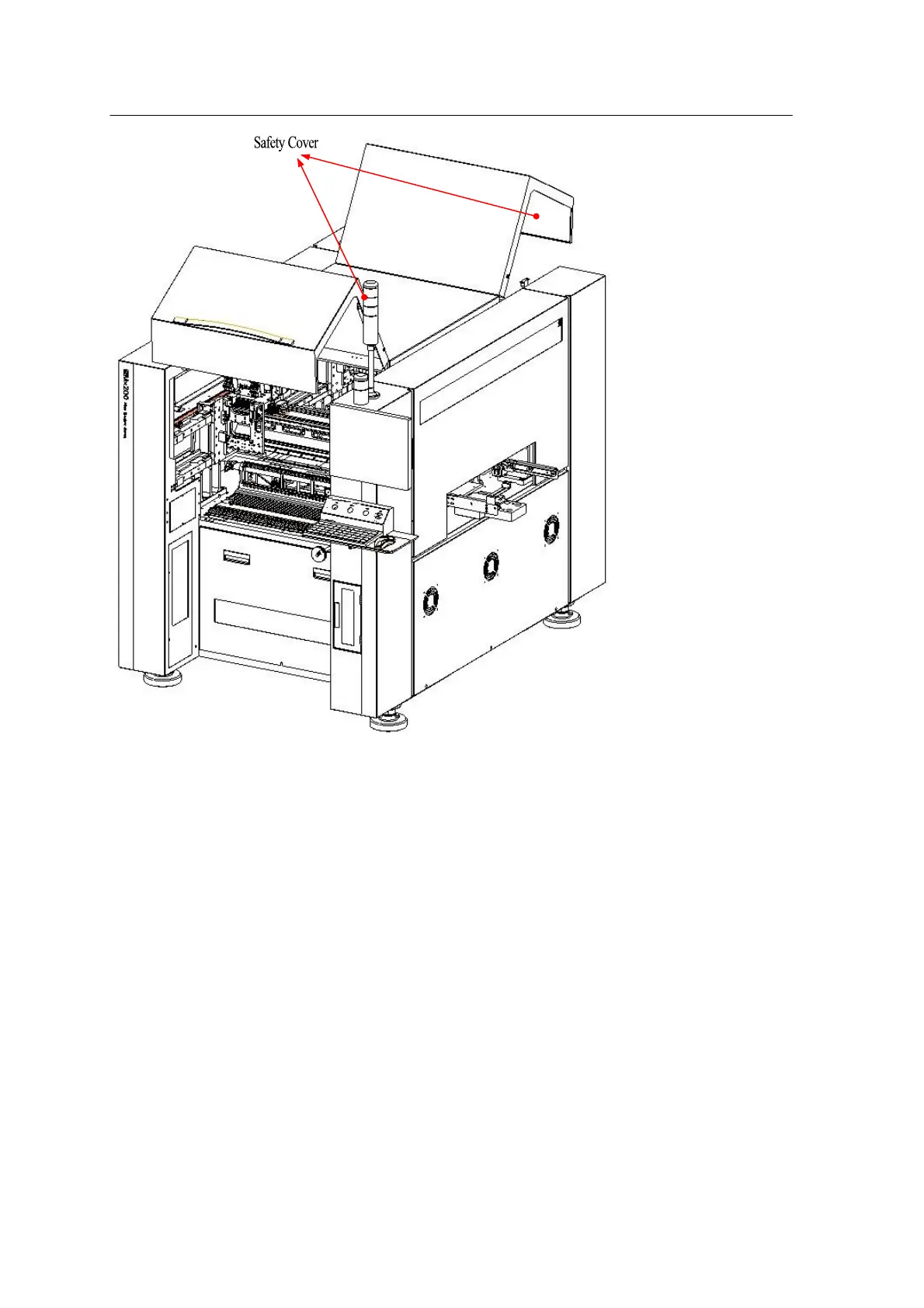

<Figure 3-1 가 Mx100/200 SMD series safety cover >
Emergency push button switch
The emergency push button is installed on the front and rear sides of
the machine respectively.
When an emergency button is pressed, the control power of the gantry
(X,Y axes) goes off to stop motion. This means that dangerous
situation is avoided because power is off. At this time, the placing work
stops and the halted work is resumed or dropped when the machine
runs again.
To restore the emergency button, rotate the button clock wise to
release it.
