6-78 Mx100/200 Series Operation Manual
This function is commonly used to extract the current PCB from the conveyor or in case of
machine power down.
Note) The last index is searched through PIC Start of Place Data tab and inserted into the User
Defined Position.
• Data Check: Checks data applied to production.
[ Dry Run]
Select the Production/Dry Run menu.

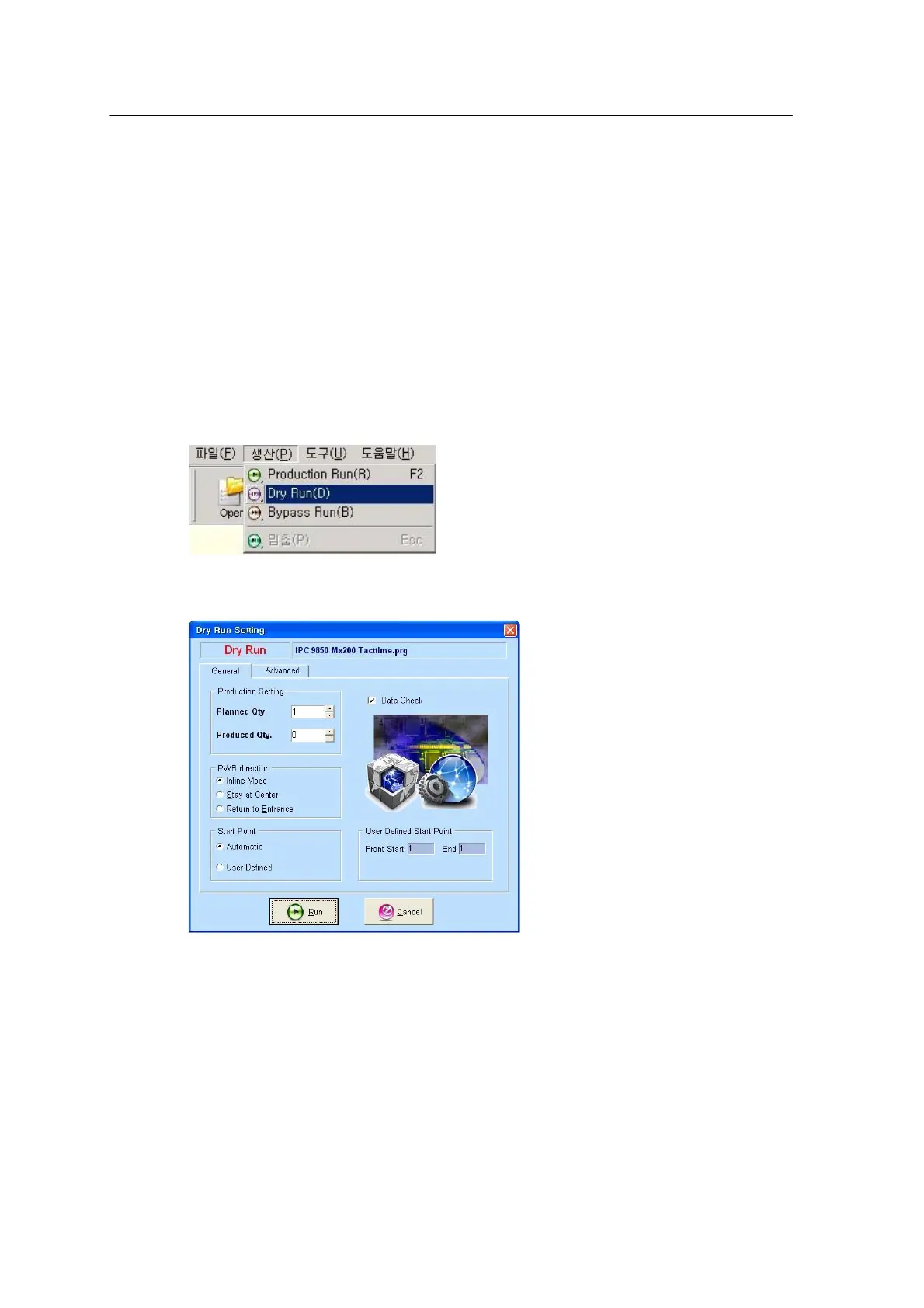

<Figure 6-77 가 Dry Run >
<Figure 6-78 가 Dry Run main window >
After setup in the Dry Run Setting window is completed, place PWB on the inlet conveyor and
press the RUN button to start Dry Run.
[Bypass Run]
Select the Production/Bypass Run menu.
To Next Page
