Mirae Mx200 - Linear Slide check

Chapter 4 Regular Chec4k- 4-25

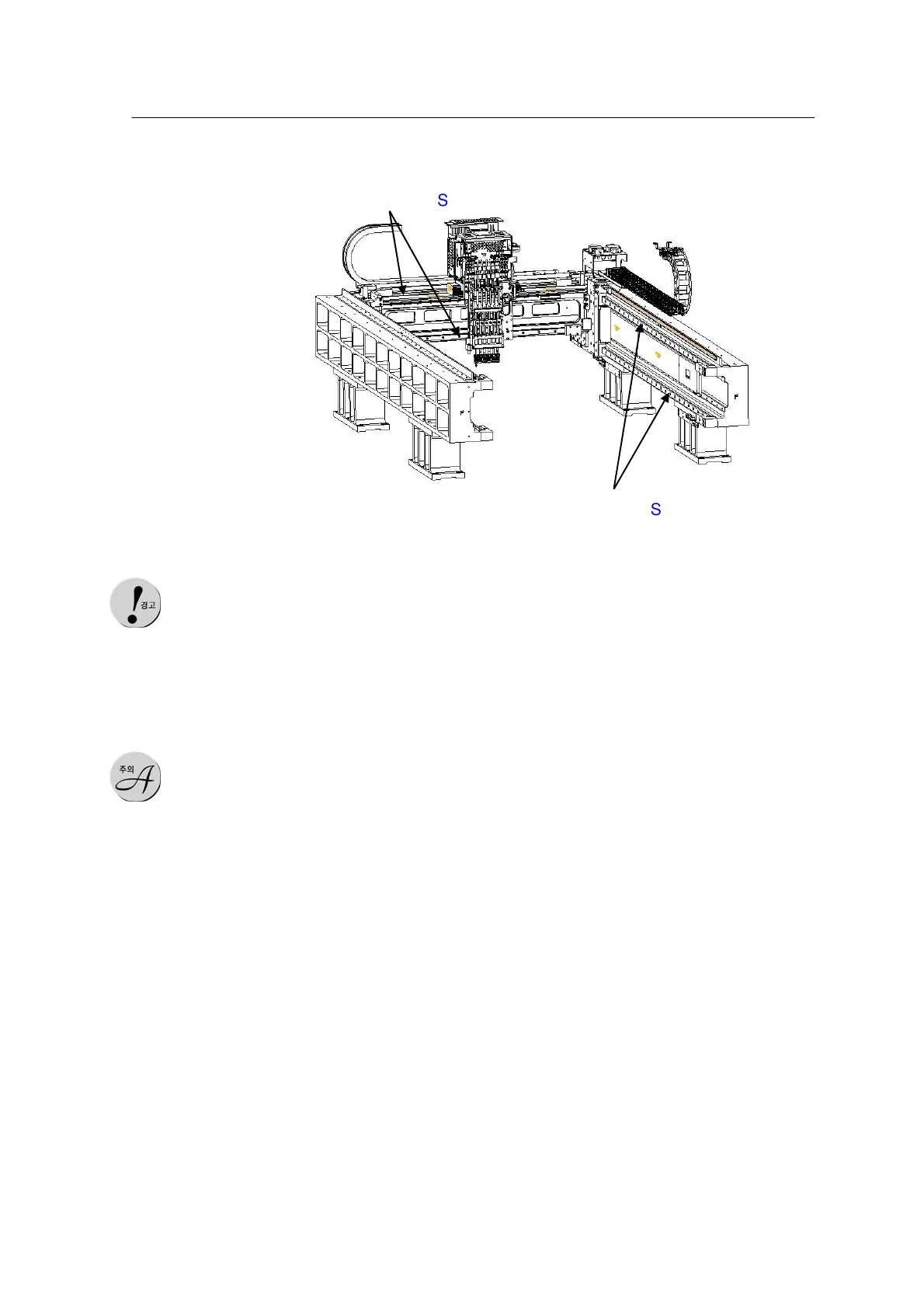

Carry out X-Y Gantry check and maintenance as follows.
 X-axis Linear Slide checking and greasing
Periodic checking and greasing
is required for the X-axis Linear Slide.
Make sure to unplug the
machine for the
worker’s safety.
1. Unplug the machine.
2. Turn off the circuit breaker (MCCB) at the rear
of the machine.
3. Manually move the gantry to the + limit of X-Beam.
1) Pay attention not to let
the
Linear Scale Tape or Linear
4. Wipe grease and dust from the X-axis Linear Slide using a
clean, soft cloth.
Scale Reading stained
with grease, etc.
Malfunction of the X-Y
Gantry could be caused.
2) Two selaings are
attached
5. Manually move the gantry to the - limit of X-Beam.
6. Wipe grease and dust from the X-axis Linear Slide
using a clean, soft cloth.
to both ends of the
Linear Slide Block. If
the machine is operated
just after greasing the
X-axis Linear Slide, part
of the grease could
drop on the floor.
Therefore, wipe out part
7. Apply a thin layer of grease along the longitudinal direction
of the linear slide.
X
-
axis Linear Slid
e
Y
-
axis Linear Slid
e
