Mirae Mx200 - SETTING REEL TO THE FEEDER

2-6 C-Feeder User Manual

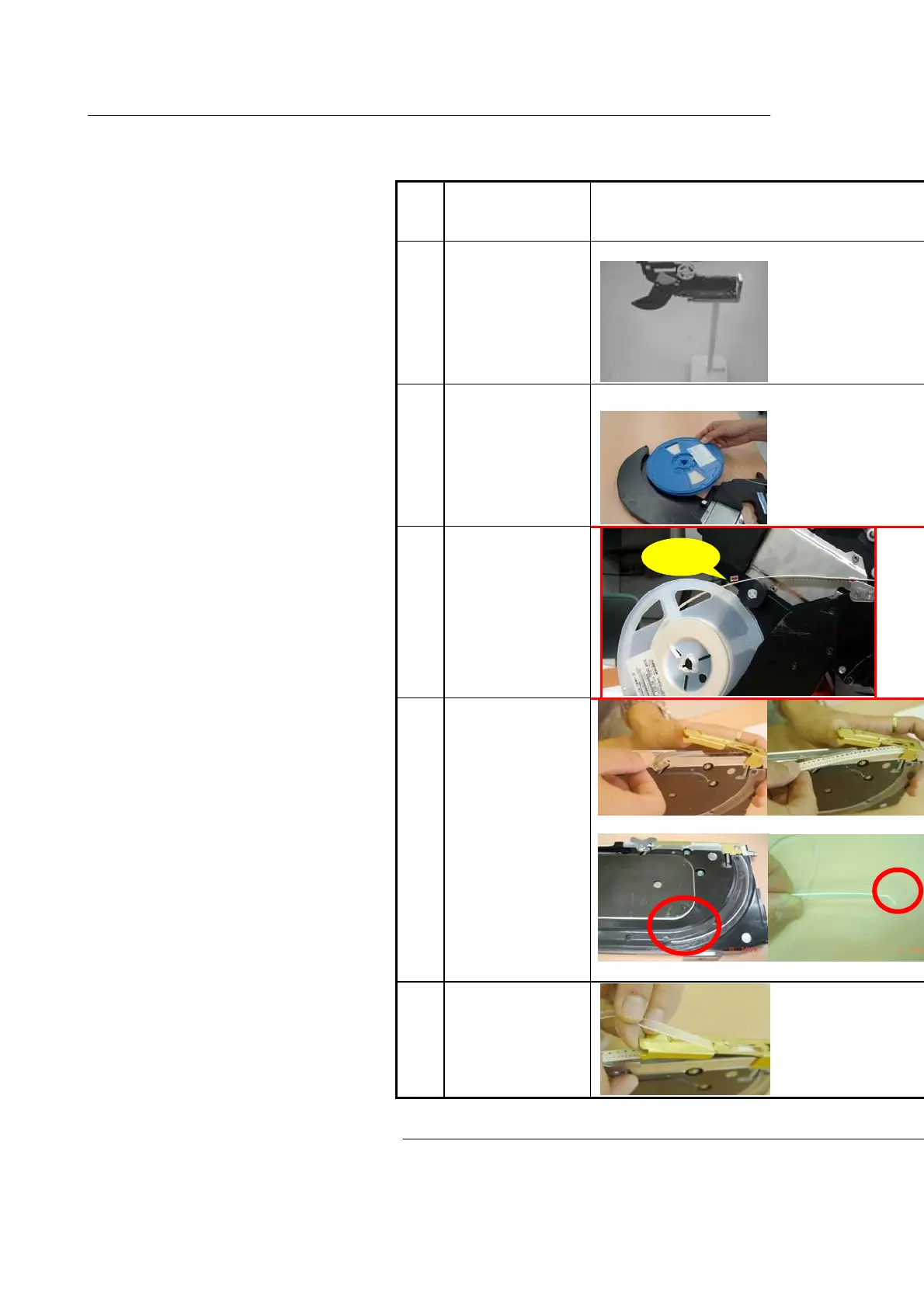

Setting reel to the feeder
No
Action
Figure
Caution
1
Mount the feeder
on the feeder reel
exchange stand or
feeder setting jig
2
Mount the reel on
reel hanger
3
Set the reel to the
reel path
4
Release the reel
cover locking
lever, open the reel
cover, and insert
the reel to the reel
path.
5
Install the vinyl off
part to the reel
cover slot.
Chapter 2 Preparation for Production 2-3
