Chapter 3 Setup 3-3
<Step 2> adjust the height setting value suitable to Line Level by turning height adjusting bolt to
left & right. Set the gap between left/right height setting value to the minimum to make the feeder
base parallel. If the line level is 930mm or lower, replace the bolts with the special height adjusting
bolts (L=90), and set the height.

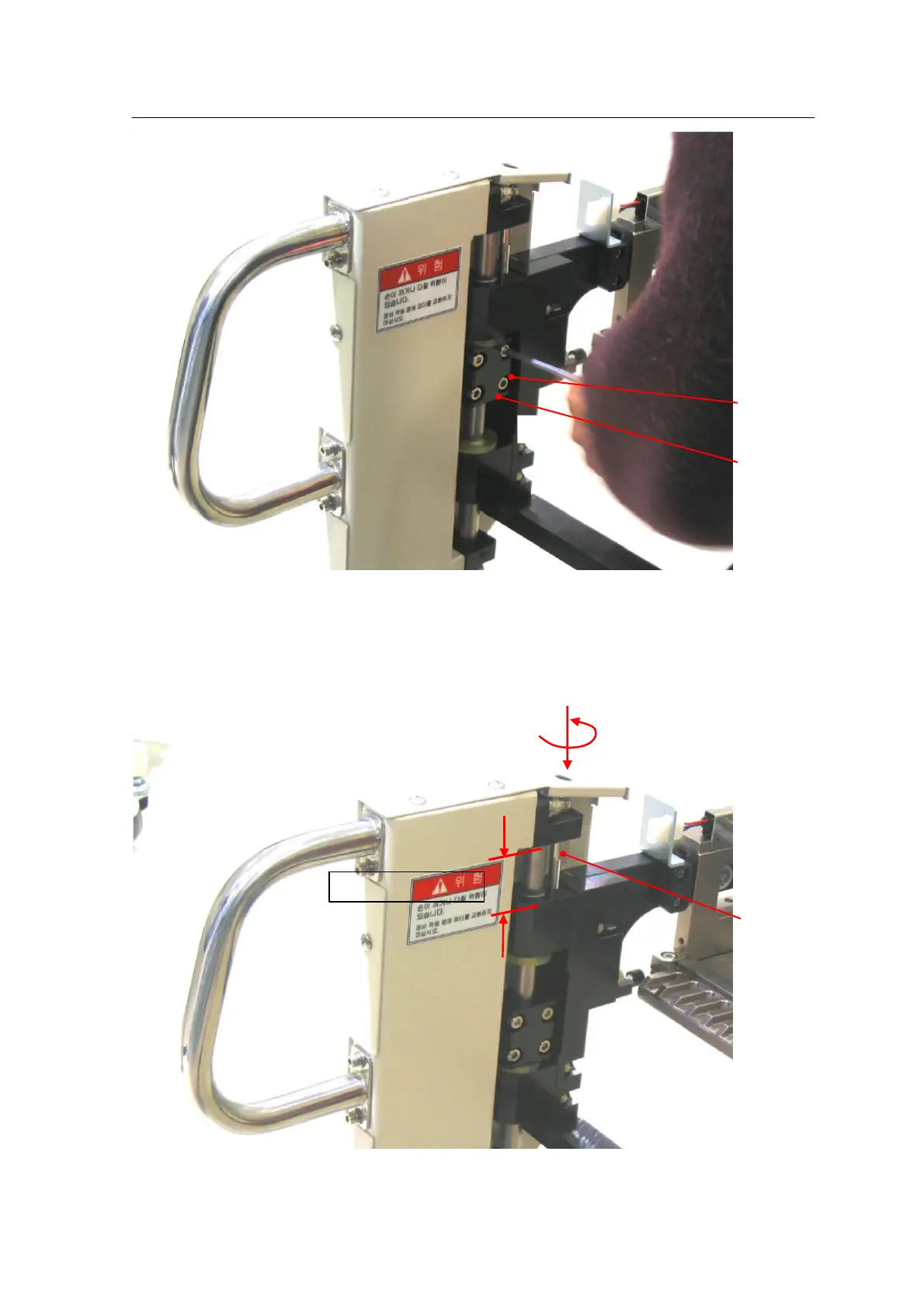

<Step 3> Raise the shaft holder to the bottom of bush block, and fix the shaft holder bolt as in the
following figure.
