Note 1) Unit : mm
Note 2) Height setting tolerance : ± 3mm

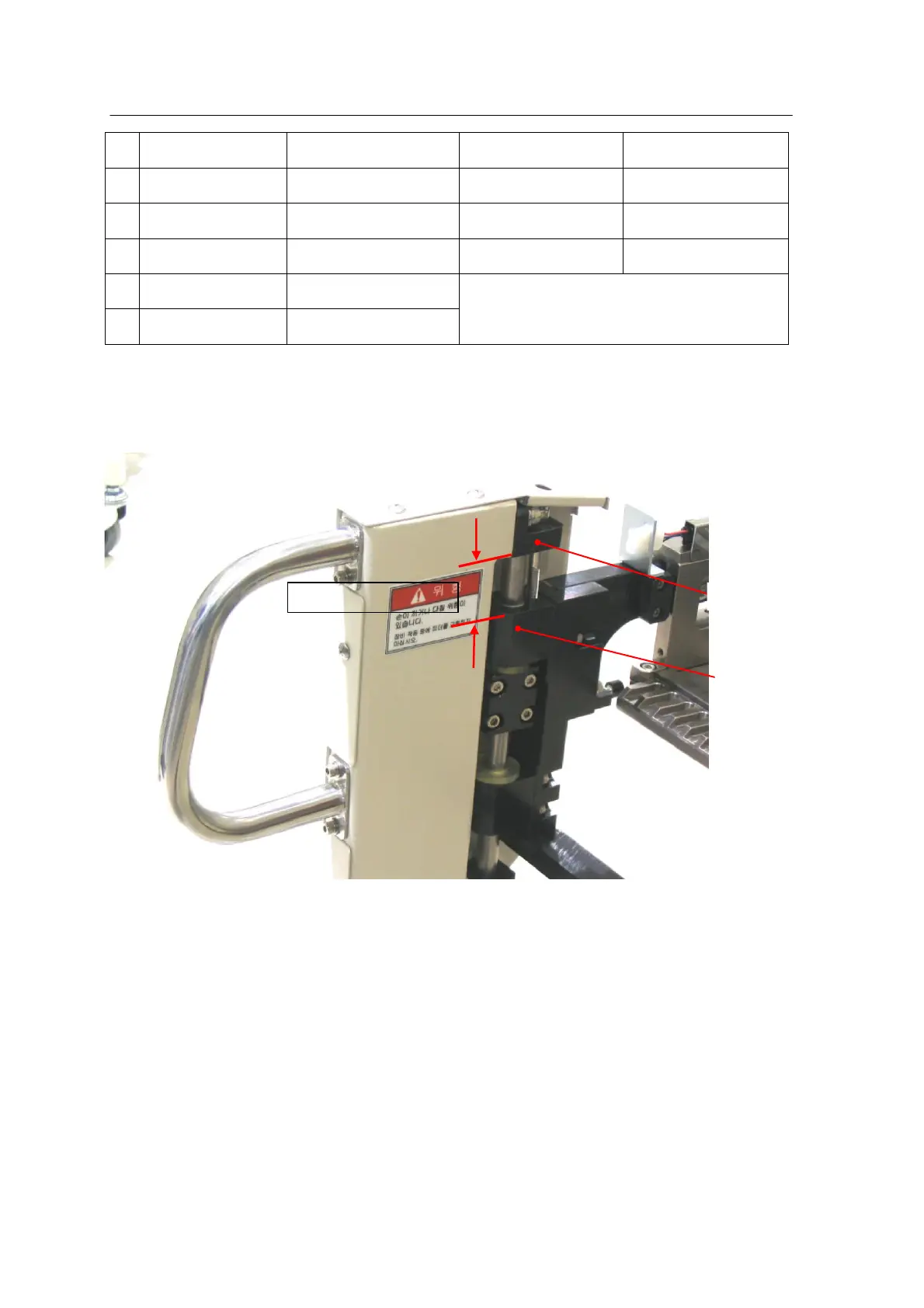

Height setting: Distance between the support bracket bottom and the bush block top.
Set the height in the following procedure.
<Step 1> As shown in the following figure, unfasten the shaft holder bolts so that the shaft holder
can move freely. Do not completely remove the bolts and leave couple of threads inside the shaft
holder tab.
Unfasten the bolts on the other side.
To Next Page
