4G6 ENGINE (E-W) -
Alternator and Ignition System
11A-3-1
3. ALTERNATOR AND IGNITION SYSTEM
REMOVAL AND INSTALLATION <CARBURETOR>
9
10
4
5
3
1
7
6
12 Nm
25 Nm
24 Nm
10 Nm
9Nm
25 Nm
22 Nm
44 Nm
8
2

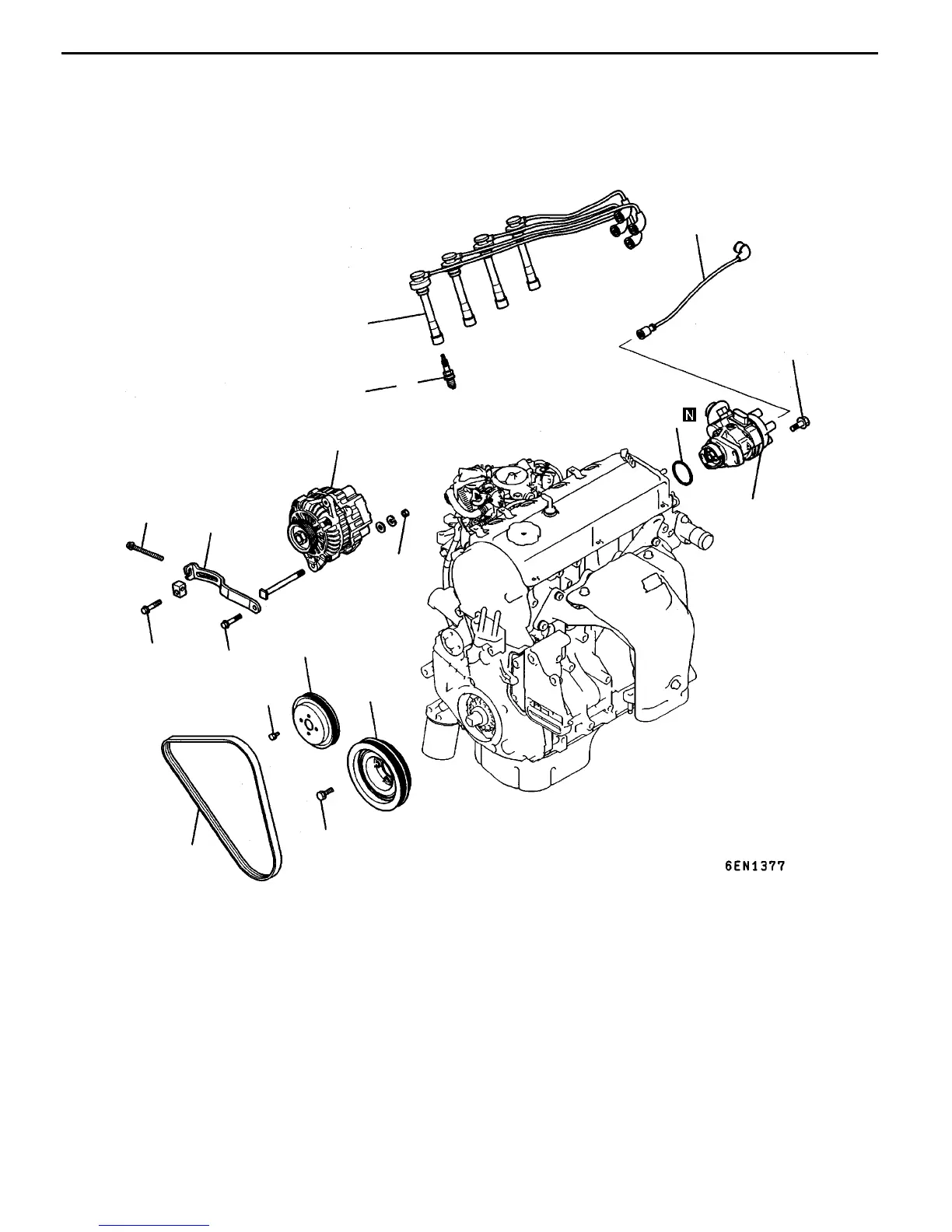

Removal steps
1. Drive belt
2. Water pump pulley
3. Alternator brace
4. Alternator
5. Crankshaft pulley
6. Spark plug cable
7. Spark plug
8. High tension cable
"BA 9. Distributor assembly
10. O-ring
PWEE9616
