4G6 ENGINE (E-W) -
Alternator and Ignition System
11A-3-4

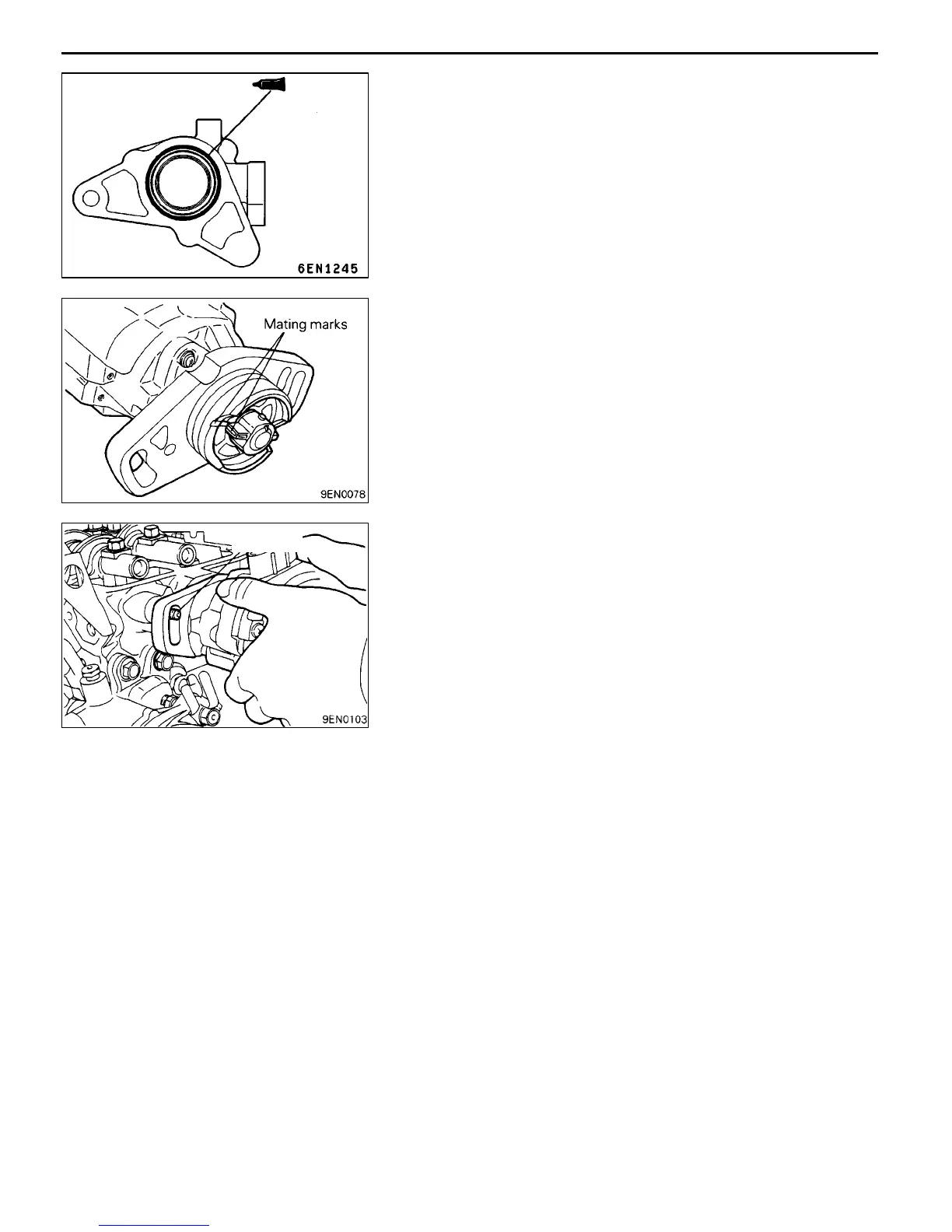

INSTALLATION SERVICE POINTS
"
A
A
CAMSHAFT POSITION SENSOR SUPPORT
INSTALLATION
(1) Apply a 3 mm bead of form-in-place gasket (FIPG) to
the area shown.
Specified sealant:
Mitsubishi Genuine Part No. MD970389 or
equivalent
"
B
A
DISTRIBUTOR ASSEMBLY INSTALLATION
(1) Turn the crankshaft to bring No. 1 cylinder to the top
dead center on compression stroke.
(2) Align the mating marks on the distributor housing with
that of the coupling key.
(3) Install the distributor assembly on the engine while aligning
the stud bolt used for securing the distributor with the
slot in the mounting flange of the distributor.
AddedPWEE9616-A
E
Aug. 1998Mitsubishi Motors Corporation
Stud bolt
To Next Page
